The Dong Cheng DCKIT15 Cordless Combo Kit combines three 20V brushless power tools for drilling, screw fastening, impact driving and rotary hammer applications.

The kit includes the DCJZ03-13 Brushless Driver / Hammer Drill, delivering up to 120 N·m maximum torque, the compact DCPL208 Brushless Impact Driver with up to 208 N·m torque, and the DCZC04-24 Brushless Rotary Hammer with 2.7 J impact energy and three operating modes.

Supplied with three 20V 4.0Ah Li-ion batteries and one fast charger, the DCKIT15 provides a practical multi-tool setup for construction, installation, renovation and general maintenance work.

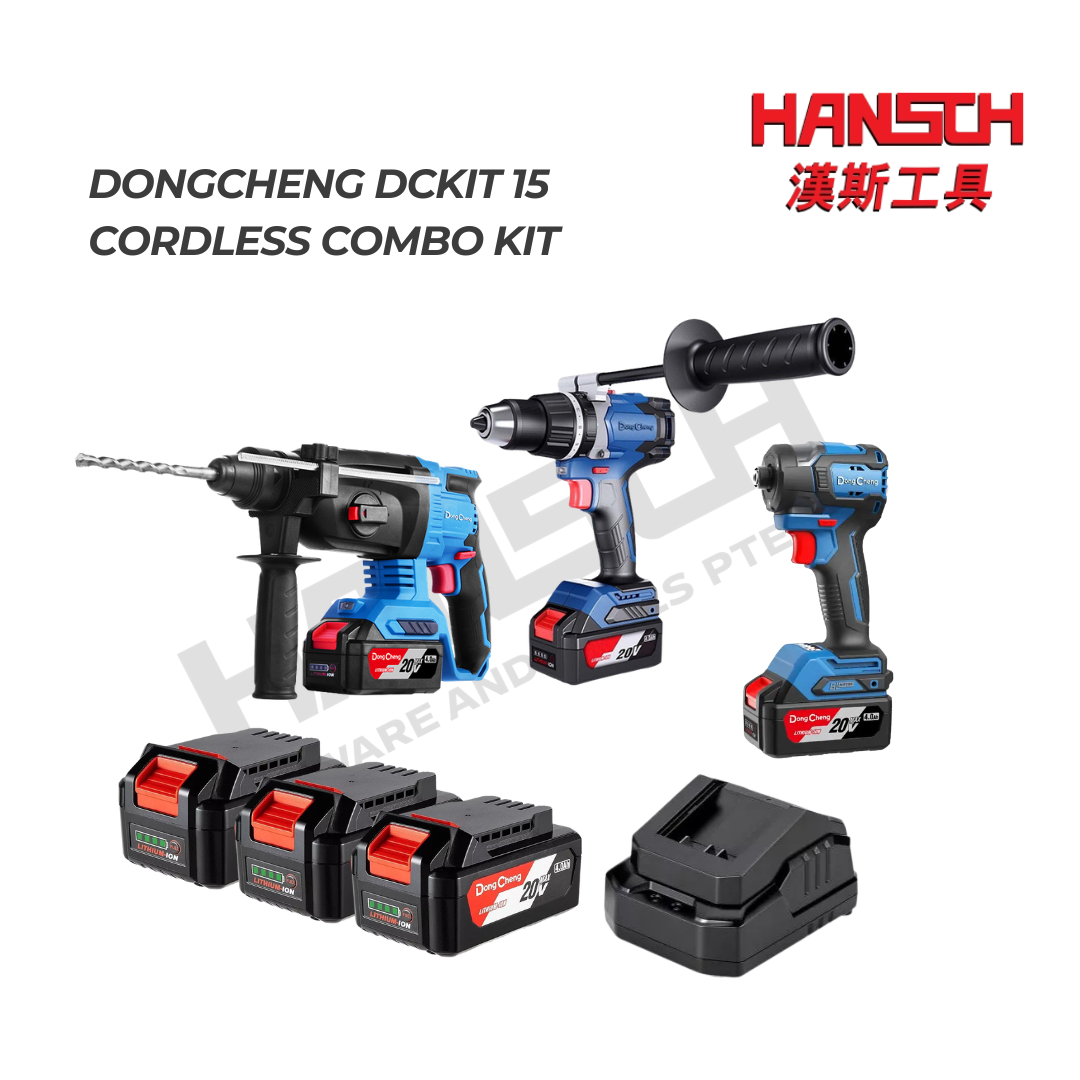

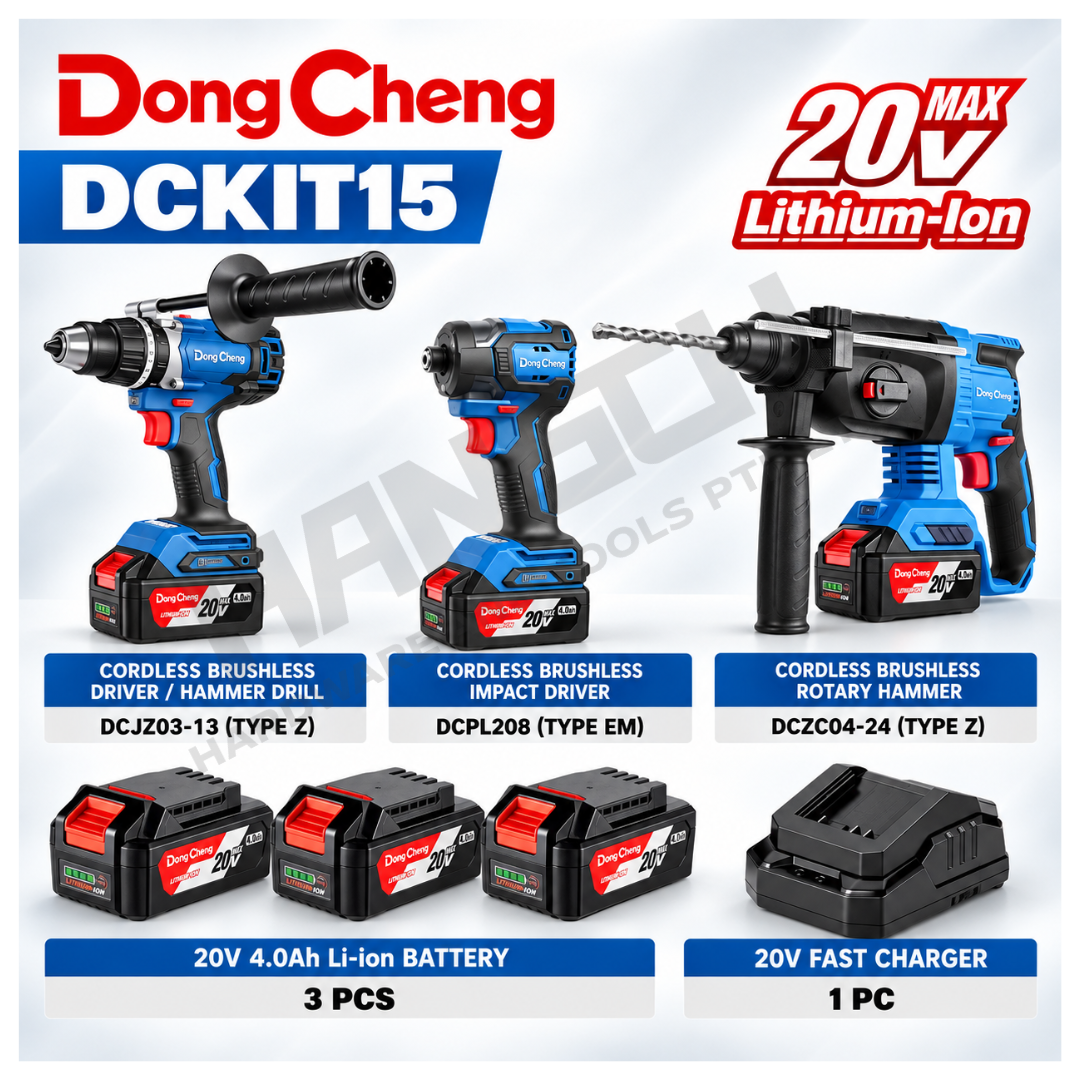

KIT INCLUDES

  • 1 × DCJZ03-13 (Type Z) Cordless Brushless Driver / Hammer Drill
  • 1 × DCPL208 (Type EM) Cordless Brushless Impact Driver
  • 1 × DCZC04-24 (Type Z) Cordless Brushless Rotary Hammer
  • 3 × 20V 4.0Ah Li-ion Batteries
  • 1 × 20V Fast Charger



KEY FEATURES

  • 3-tool cordless combination for drilling, fastening and rotary hammer work
  • Brushless motors across all three power tools
  • DCJZ03-13: Up to 120 N·m maximum torque
  • 2-speed operation with 24+2 torque settings
  • All-metal self-locking 13 mm chuck
  • DCPL208: Maximum torque up to 208 N·m
  • Compact 107 mm body for working in confined spaces
  • 3 torque and speed settings
  • Triangle shadowless work light
  • Self-tapping screw mode and low starting-speed control
  • DCZC04-24: 2.7 J impact energy
  • 3 operating modes: drilling, rotary hammer and demolition
  • Electronic constant-speed control
  • Mechanical and electronic clutch design
  • Includes 3 × 20V 4.0Ah batteries for use with the supplied kit tools

Kit Contents

Model DCKIT15
Driver / Hammer Drill 1 × DCJZ03-13 (Type Z)
Impact Driver 1 × DCPL208 (Type EM)
Rotary Hammer 1 × DCZC04-24 (Type Z)
Batteries 3 × 20V 4.0Ah Li-ion Batteries
Charger 1 × 20V Fast Charger

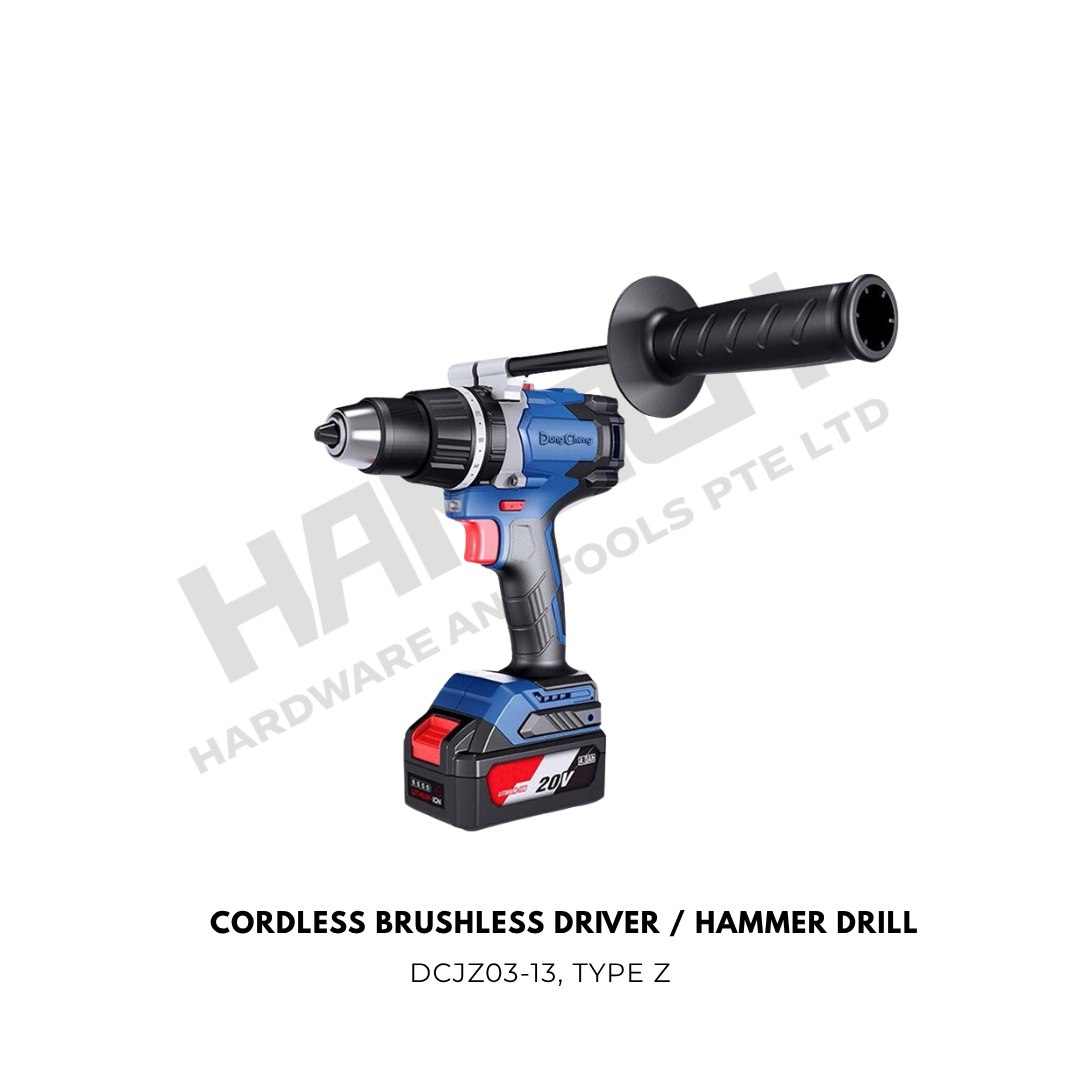

DCJZ03-13 (Type Z) Cordless Brushless Driver / Hammer Drill

Battery 20VMAX / Solo
Max. Chucking Capacity 13 mm
Max. Screw Diameter 10 mm
Rated Impact Frequency 0–32,000 / min
No-Load Speed 1st Gear: 0–500 r/min
2nd Gear: 0–2,000 r/min
Max. Drilling Diameter Steel: Ø13 mm
Wood: Ø45 mm
Brick Wall: Ø13 mm
Torque Setting 24+2
Max. Torque 120 N·m
Net Weight 1.6 kg

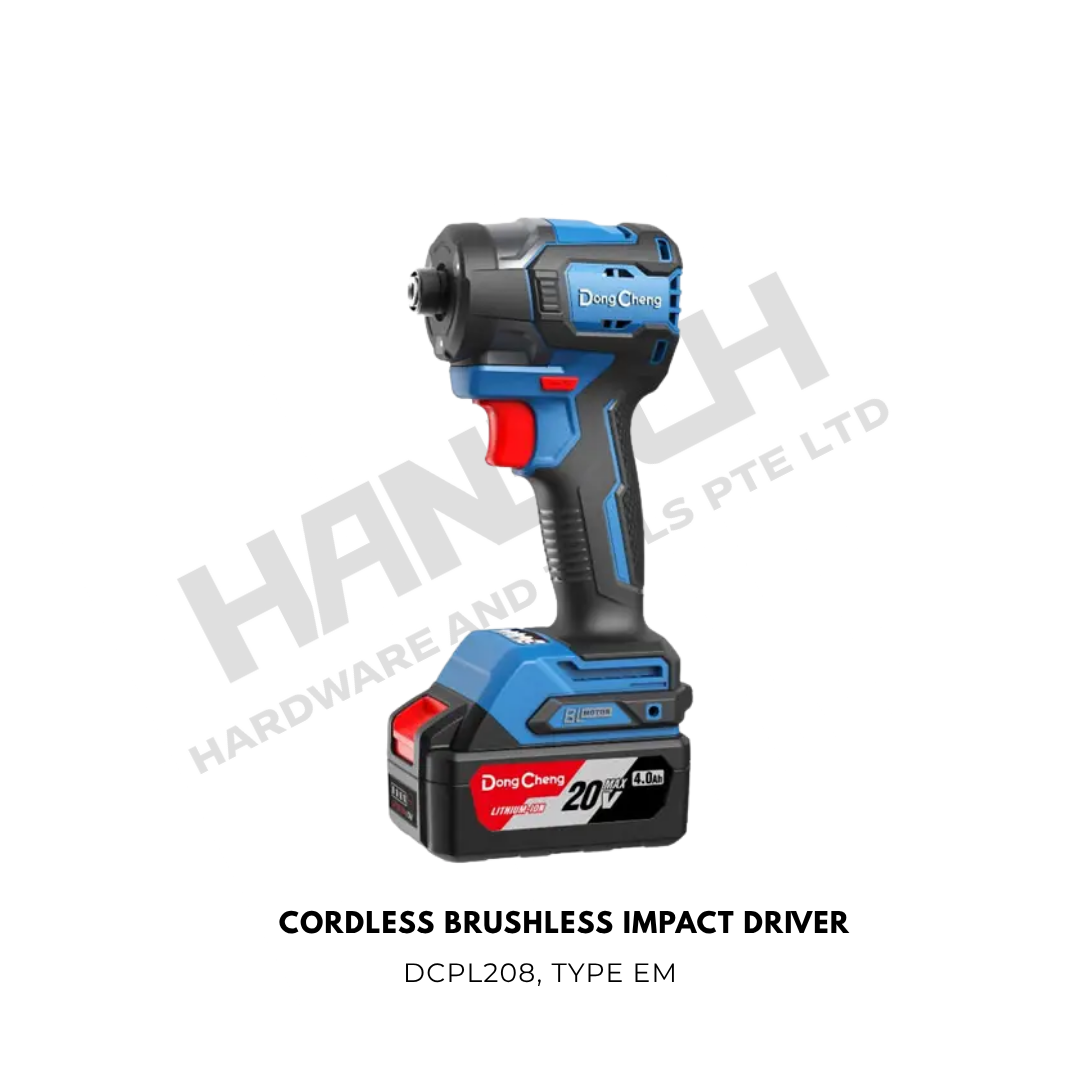

DCPL208 (Type EM) Cordless Brushless Impact Driver

Max. Power Output 600 W
Clamping Capacity 6.35 mm Hex
Standard Bolt Size M5–M16
Torque Setting L Gear: 28 N·m
M Gear: 170 N·m
H Gear: 208 N·m
No-Load Speed L Gear: 0–1,000 / min
M Gear: 0–2,600 / min
H Gear: 0–3,200 / min
Rated Impact Frequency L Gear: 0–700 / min
M Gear: 0–3,600 / min
H Gear: 0–4,300 / min
Net Weight 1.7 kg

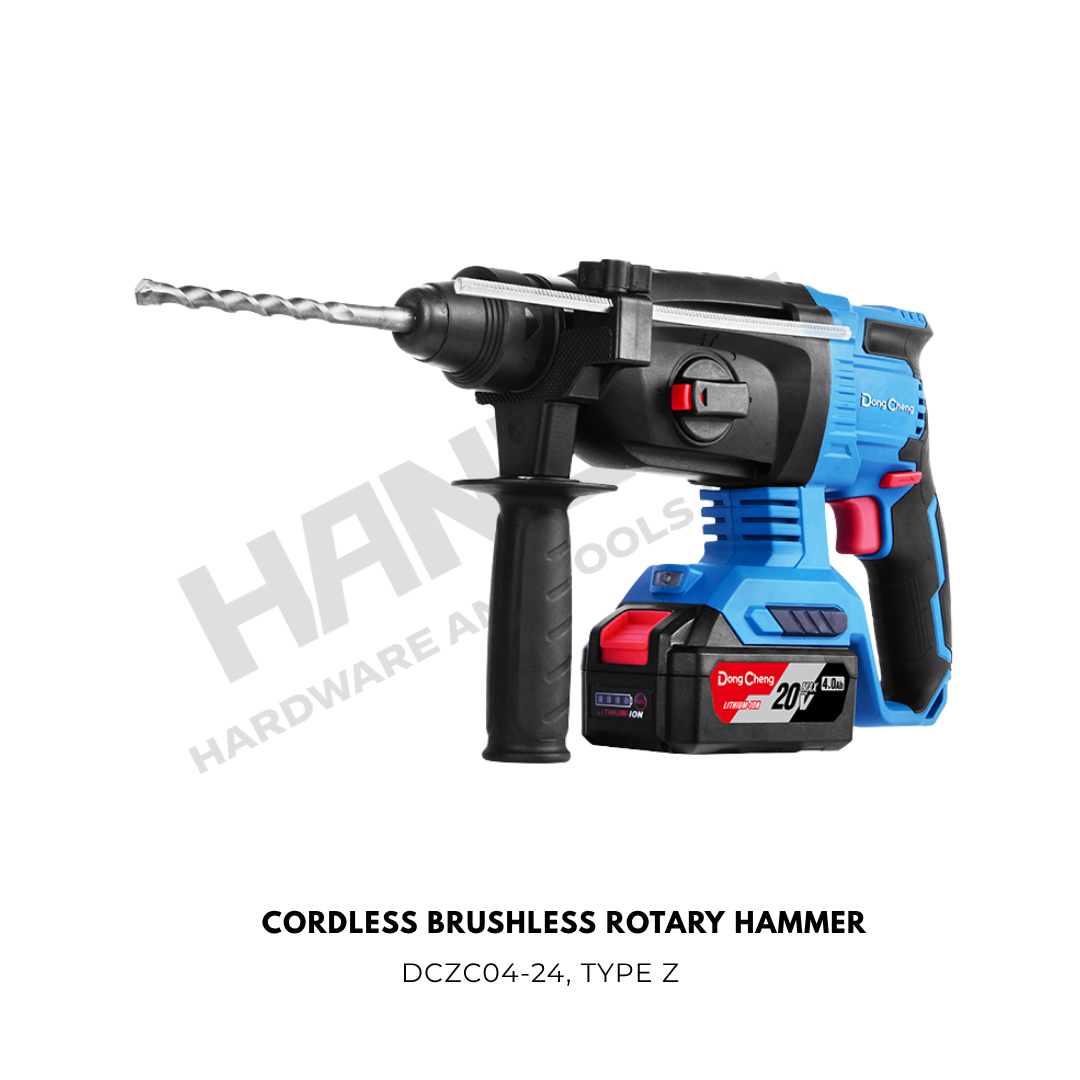

DCZC04-24 (Type Z) Cordless Brushless Rotary Hammer

Battery Solo
Impact Energy 2.7 J
No-Load Speed 0–1,000 r/min
Rated Impact Frequency 0–4,500 / min
Max. Drilling Capacity Concrete: Ø24 mm
Steel: Ø13 mm
Wood: Ø28 mm
Net Weight 2.6 kg
  • Drilling in wood, steel, brick walls and concrete
  • Driving and removing screws and fasteners
  • Fastening bolts from M5 to M16 using the impact driver
  • Rotary hammer drilling in concrete and masonry
  • Light demolition and chiselling work using the rotary hammer
  • Construction and renovation work
  • Mechanical, installation and maintenance work
