The Dong Cheng DCKIT17 20V Lithium-Ion Cordless Combo Kit is a versatile 3-tool cordless set designed for woodworking, cutting, drilling and general installation applications.

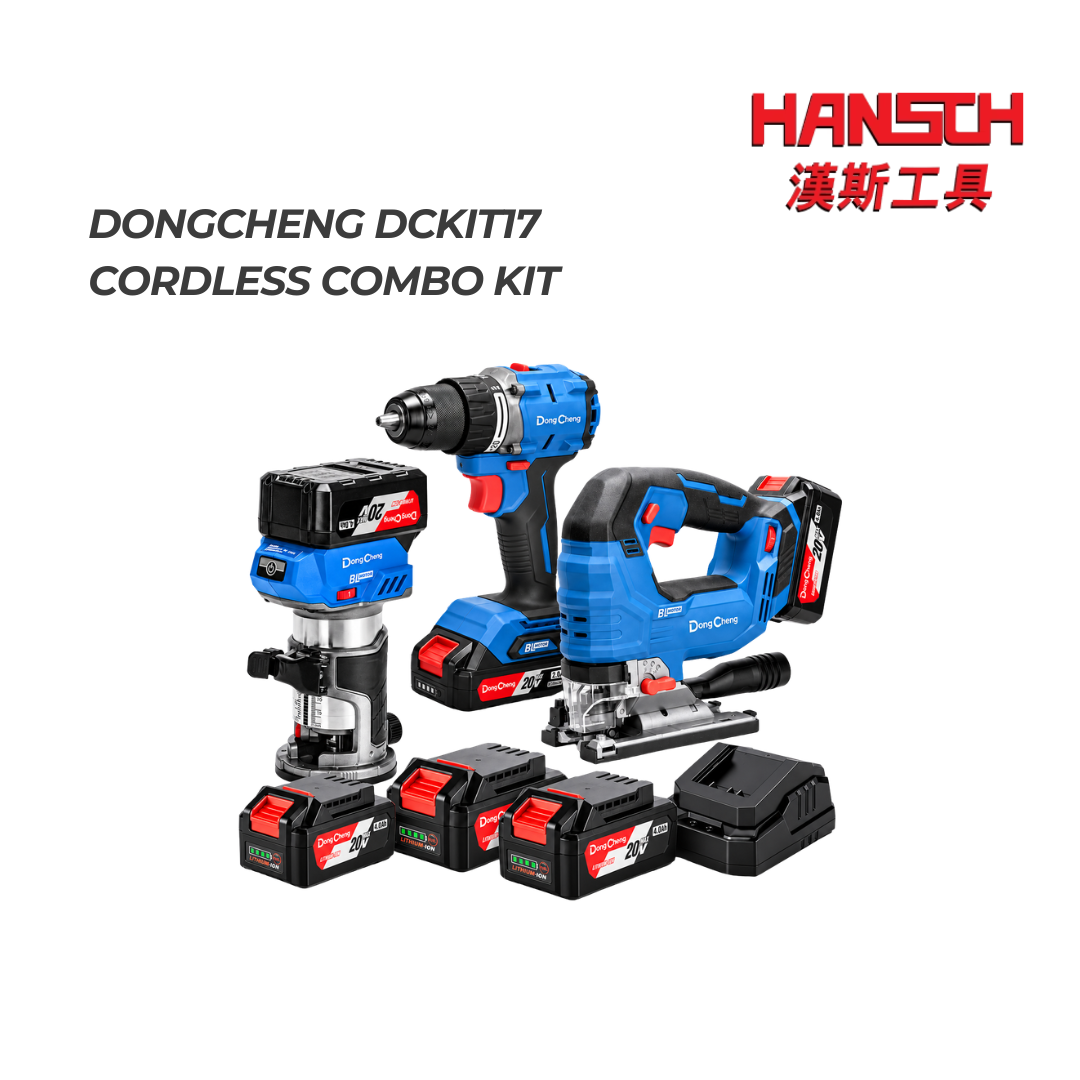

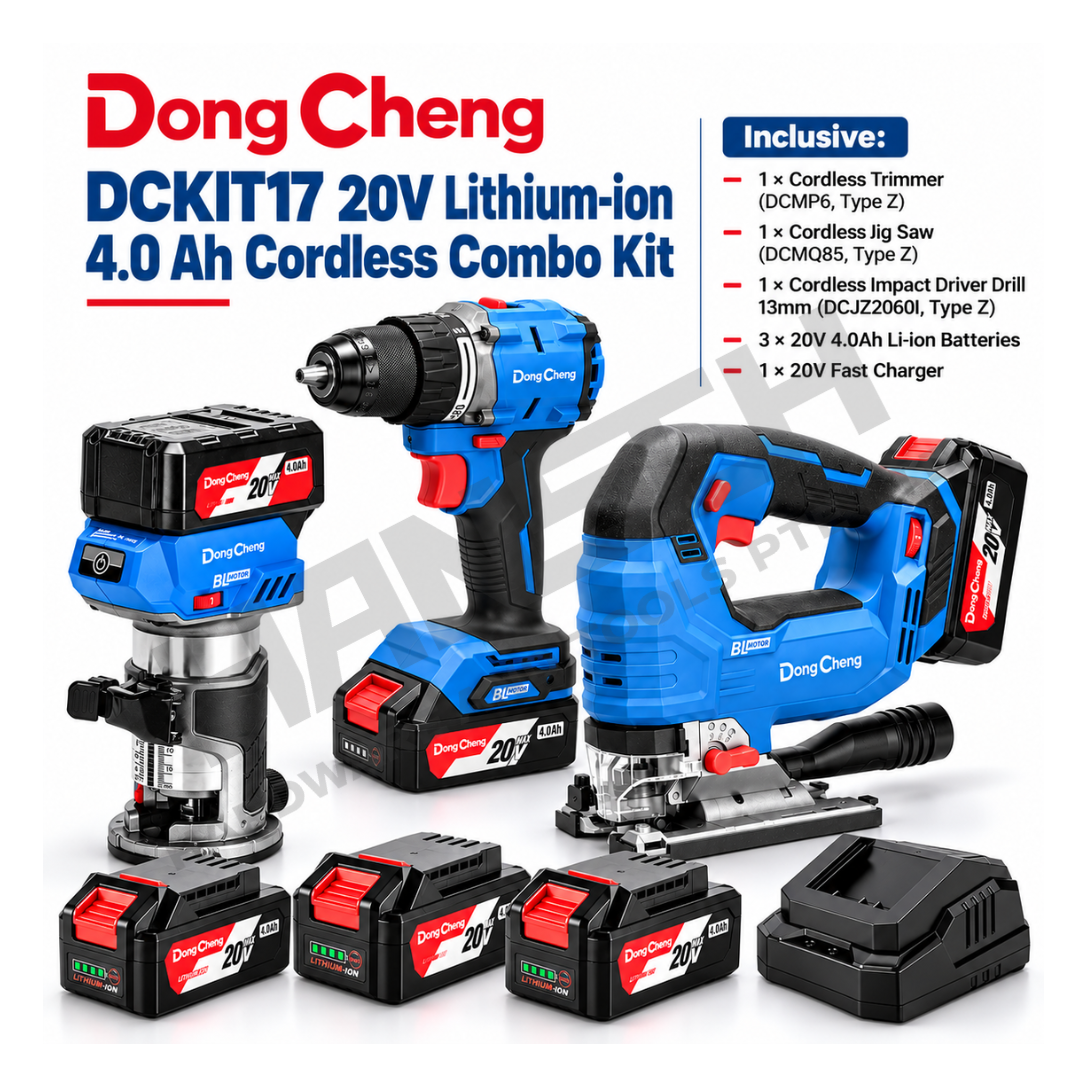

The kit consists of the DCMP6Z Cordless Trimmer, DCMQ85Z Cordless Jig Saw and DCJZ2060IZ Cordless Impact Driver Drill, providing a practical combination of tools for workshop, renovation, installation and on-site work.
Powered by Dong Cheng's 20V lithium-ion battery system, the kit includes three 20V 4.0Ah batteries, one charger and a carrying bag.
The DCMP6Z trimmer features a 600W brushless motor with 6-speed adjustment and a no-load speed range of 10,000–30,000/min. The DCMQ85Z jig saw provides 4 orbital-action settings, 6-speed adjustment and cutting capacities of up to 120mm in wood. The DCJZ2060IZ impact driver drill features a brushless motor, 20+2 torque settings, 2-speed adjustment and a maximum torque of 60N.m.
With three cordless tools operating on the same 20V battery platform, the DCKIT17 provides a convenient solution for users who require multiple tools for different working applications.
Key Features
- 3-Tool Cordless Combo Kit – Includes cordless trimmer, jig saw and impact driver drill
- 20V Lithium-Ion Platform
-
Includes 3 × 20V 4.0Ah batteries
- Includes 1 × charger
- Includes carrying bag
- Brushless motor used in the DCMP6Z trimmer and DCJZ2060IZ impact driver drill
- Adjustable operating speeds for different working conditions
- Trimmer supports connection to a dust collection system
- Jig saw features tool-less blade changing
- Jig saw provides 4 orbital-action settings and 6-speed adjustment
- Impact driver drill provides 20+2 torque settings
- Impact driver drill features a 13mm metal ratchet chuck
- Cordless design suitable for workshop and on-site applications
Dong Cheng DCKIT17 Combo Kit Specifications
| Brand | Dong Cheng |
| Model | DCKIT17 |
| Battery Type | Lithium-ion |
| Voltage | 20V |
| Battery Capacity | 4.0 Ah |
| Kit Included |
1 × Cordless Trimmer (DCMP6Z) 1 × Cordless Jig Saw (DCMQ85Z) 1 × Cordless Impact Driver Drill (DCJZ2060IZ) 3 × 20V 4.0 Ah Battery 1 × Charger 1 × Bag |
| Charger Included | Yes |
| Variable Speed Control | Yes |
| Ergonomic Design | Yes |
| Overload Protection | Yes |

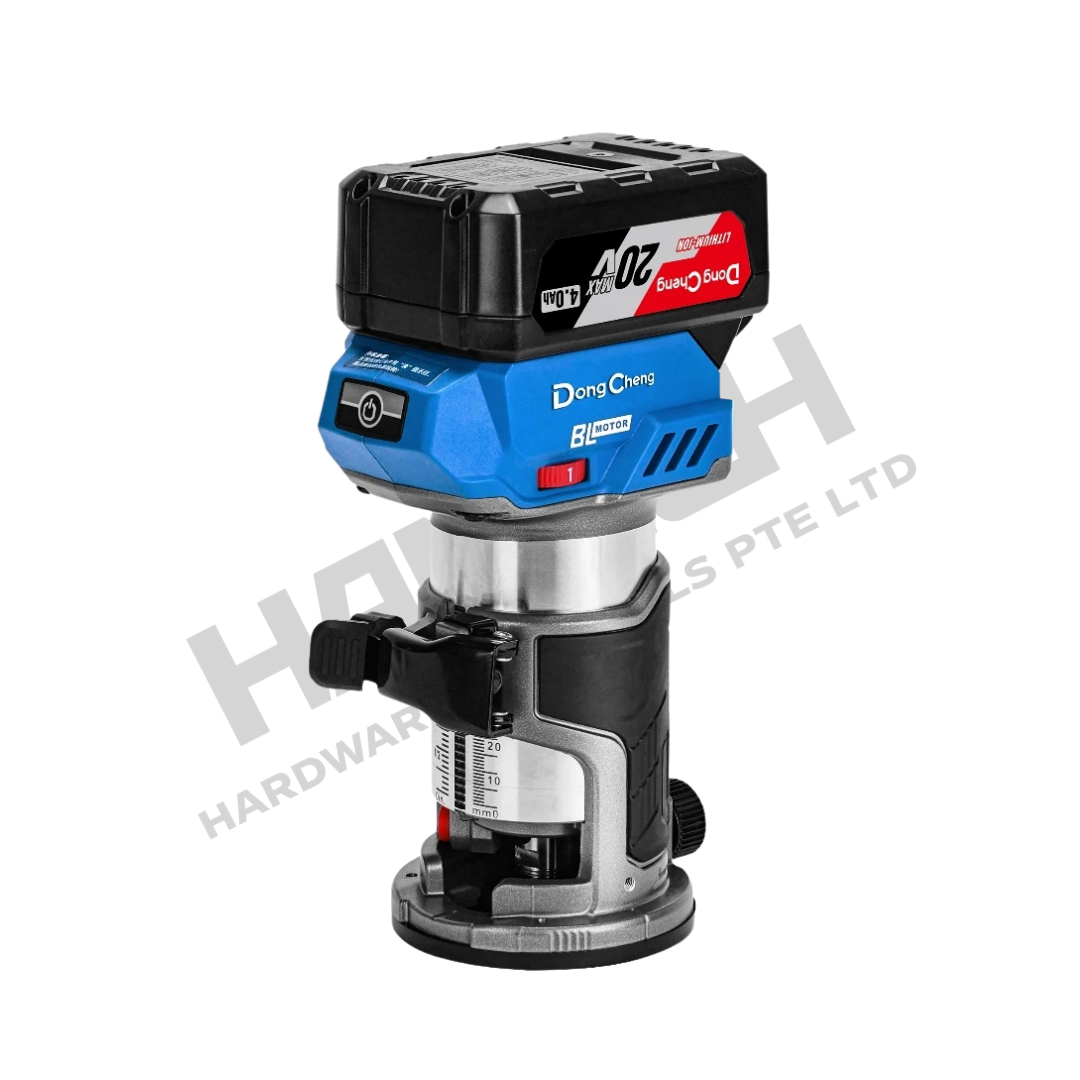

Cordless Trimmer – DCMP6Z
| Motor | 600W Brushless Motor |
| Speed Adjustment | 6 Speed |
| No-load Speed | 10000-30000/min |
| Max. Milling Cutter Diameter | Φ6.35mm |
| Net Weight | 1.5 kg |
| Dust Collection Connection | Yes |
| Other Features | Flashing malfunction alarm; multiple optional bases |

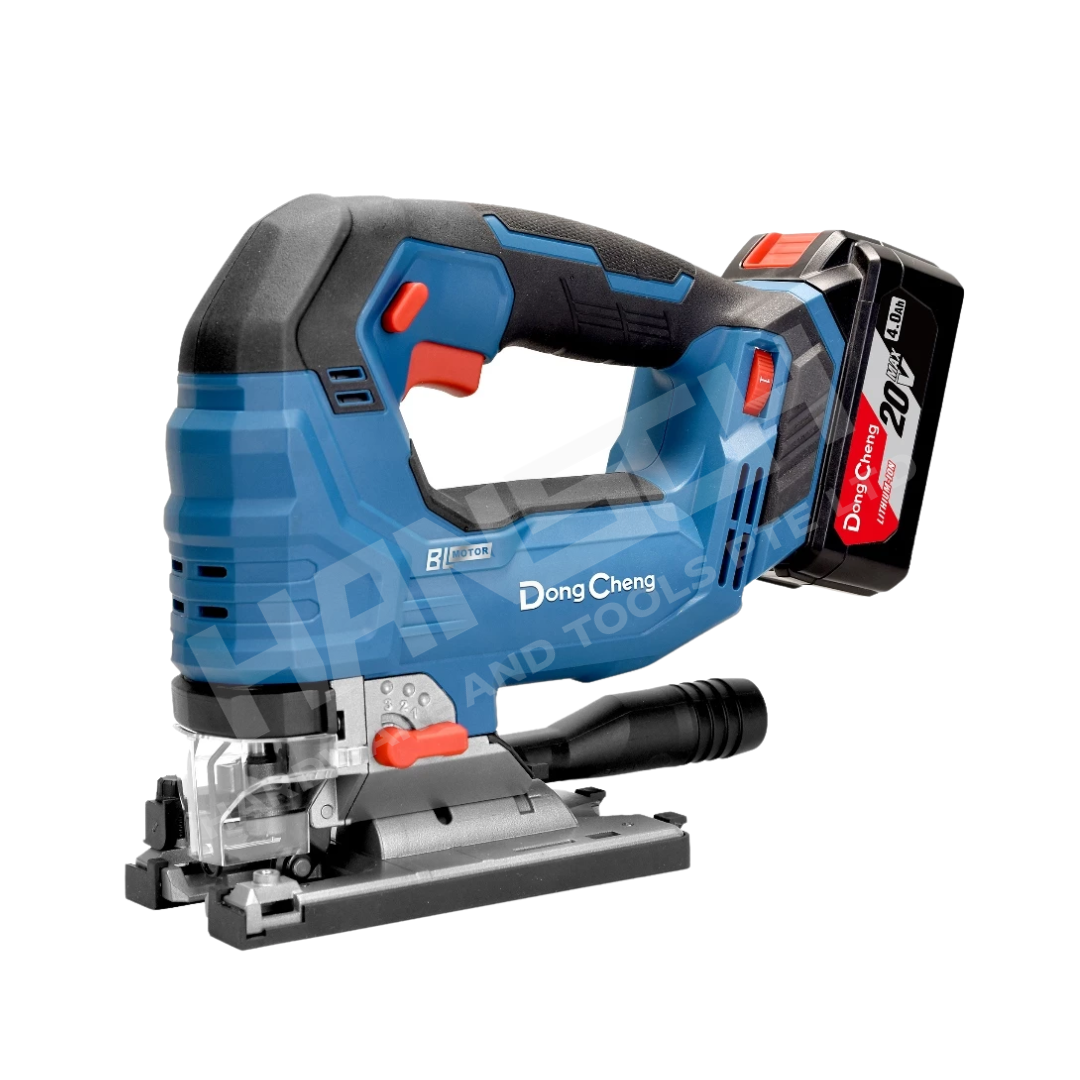

Cordless Jig Saw – DCMQ85Z
| Maximum Power Output | 420W |
| No-load Speed | 800-3500/min |
| Length of Stroke | 26mm |
| Maximum Cutting Depth – Steel | 10mm |
| Maximum Cutting Depth – Aluminium | 20mm |
| Maximum Cutting Depth – Wood | 120mm |
| Maximum Cutting Angle – Left / Right | 0-45° |
| Orbital Action | 4 Settings |
| Speed Adjustment | 6 Speed |
| Blade Change | Tool-less Blade Change System |
| Base Plate | Adjustable Metal Base Plate |
| Dust Collection Connection | Yes |
| Weight | 2.8 kg |

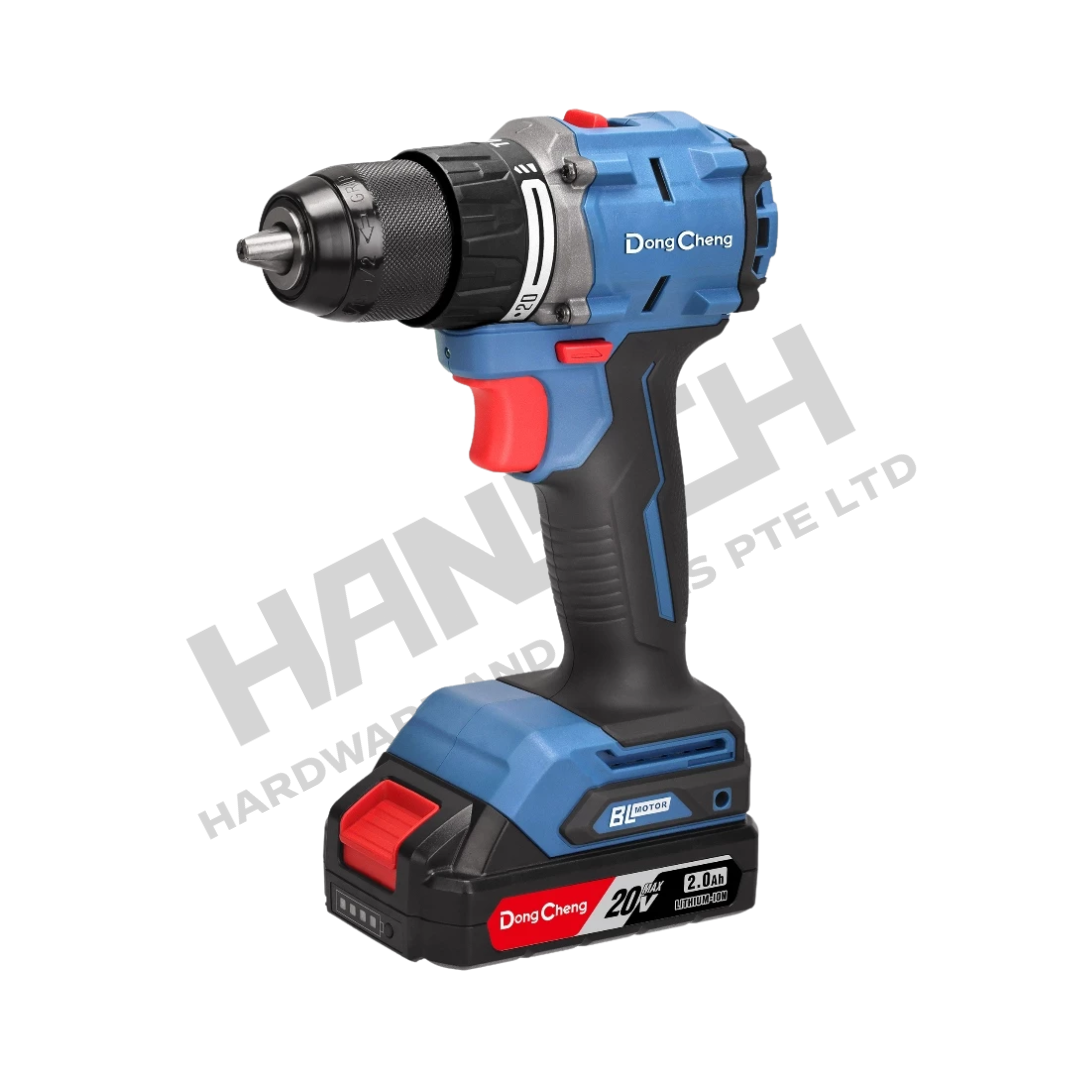

Cordless Impact Driver Drill – DCJZ2060IZ
| Motor | Brushless Motor |
| Maximum Power Output | 500W |
| Body Length | 152mm |
| Maximum Chucking Capacity | 13mm |
| Chuck | 13mm Metal Ratchet Chuck |
| Rated Impact Frequency | 0-34500/min |
| No-load Speed – 1st Gear | 0-600/min |
| No-load Speed – 2nd Gear | 0-2300/min |
| Maximum Drilling Diameter – Steel | Φ13mm |
| Maximum Drilling Diameter – Brick Wall | Φ13mm |
| Maximum Drilling Diameter – Wood | Φ38mm |
| Torque Setting | 20+2 |
| Max. Torque | 60N.m |
| Speed Adjustment | 2 Speed |
| Net Weight | 1.5 kg |
Applications
The Dong Cheng DCKIT17 cordless combo kit is suitable for a range of workshop, renovation, installation and general maintenance applications.
- Trimming and Routing: Suitable for trimming, edge working and milling applications using the DCMP6Z cordless trimmer.
- Wood Cutting: Suitable for straight, curved and angled cutting using the DCMQ85Z cordless jig saw.
- Metal and Aluminium Cutting: The jig saw supports cutting suitable steel and aluminium materials within its specified cutting capacities.
- Drilling: Suitable for drilling wood, steel and brick wall materials within the specified drilling capacities of the DCJZ2060IZ.
- Screwdriving: Suitable for fastening and screwdriving applications with adjustable torque settings.
- Workshop & Renovation Work: Suitable for fabrication, installation, maintenance and general project work requiring multiple cordless tools.
- On-Site Applications: Cordless operation provides greater mobility where direct access to a power outlet may be inconvenient.
