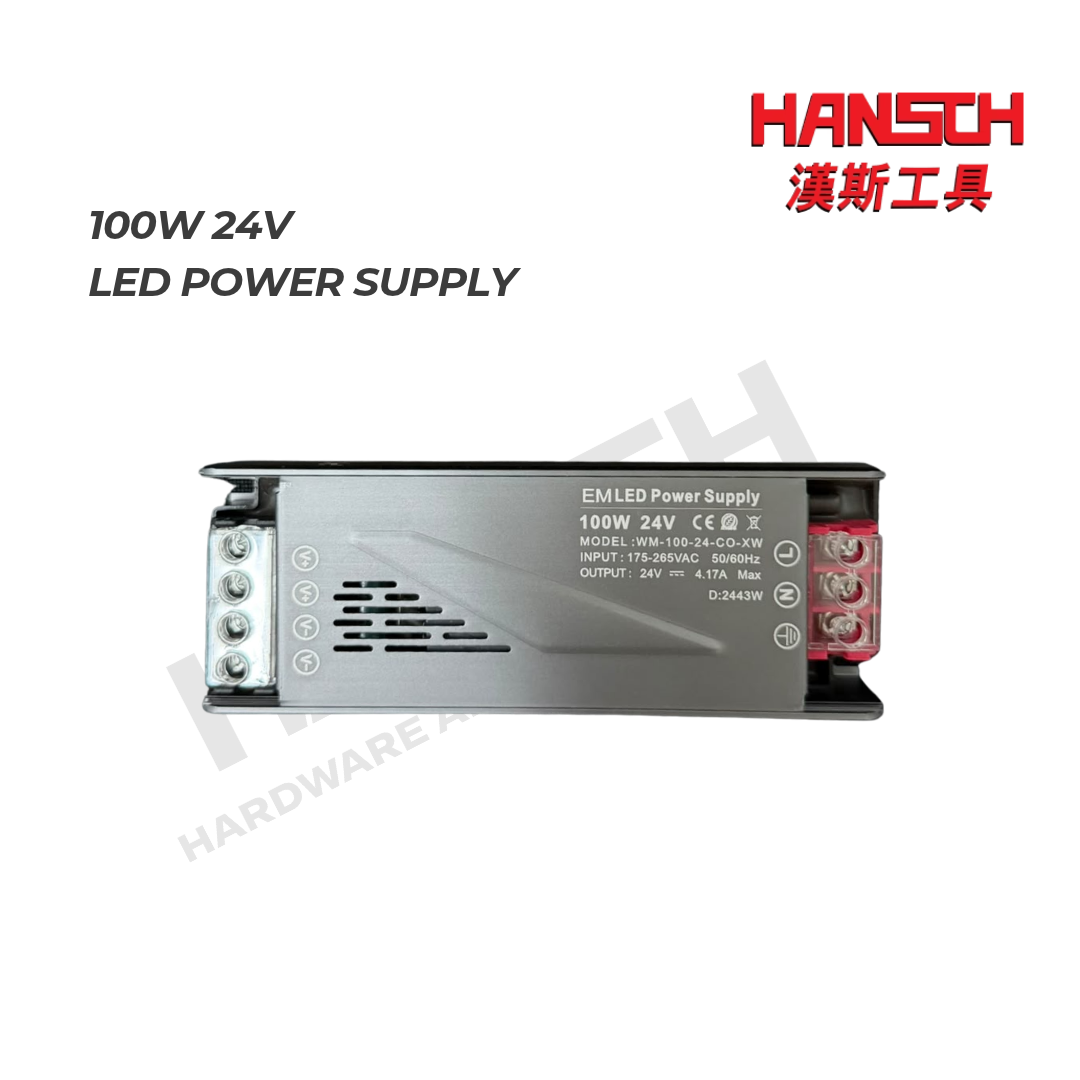

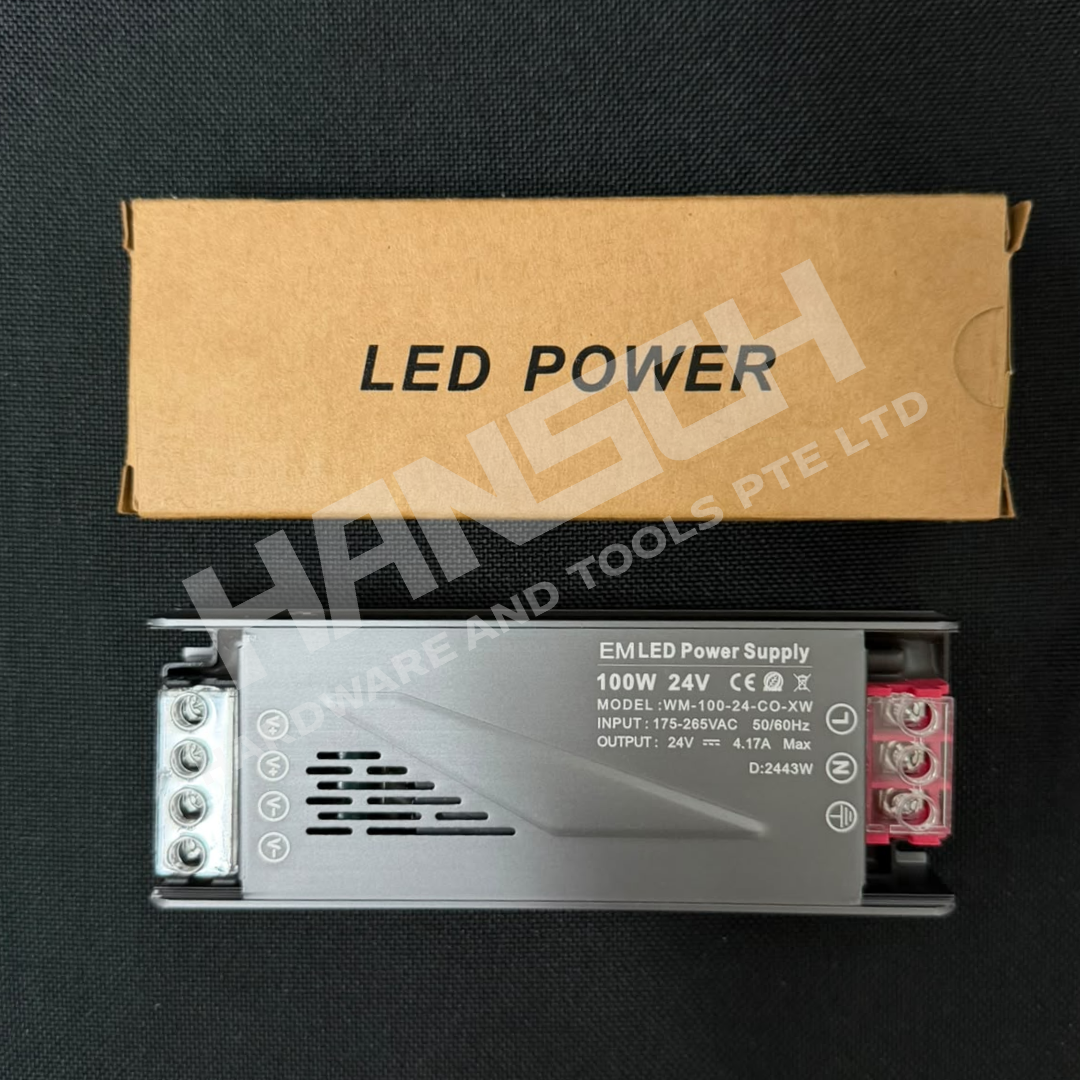

The EM LED 100W 24V LED Switching Power Supply is designed to convert AC mains power into a regulated 24V DC output for compatible LED lighting systems and electrical equipment.
Featuring a metal enclosure with ventilation slots, this power supply is equipped with screw terminal connections for AC input and DC output wiring. Its slim, rectangular design allows for mounting within suitable electrical installations.
Rated at 100W with a maximum output current of 4.17A, it is suitable for 24V DC LED lighting applications within the specified power capacity.
100W Rated Power: Provides power for compatible 24V DC LED lighting systems.
24V DC Constant Voltage Output: Designed for electrical devices requiring a regulated 24V DC supply.
Wide AC Input Range: Supports 175–265V AC, 50/60Hz.
Maximum Output Current: Rated at 4.17A.

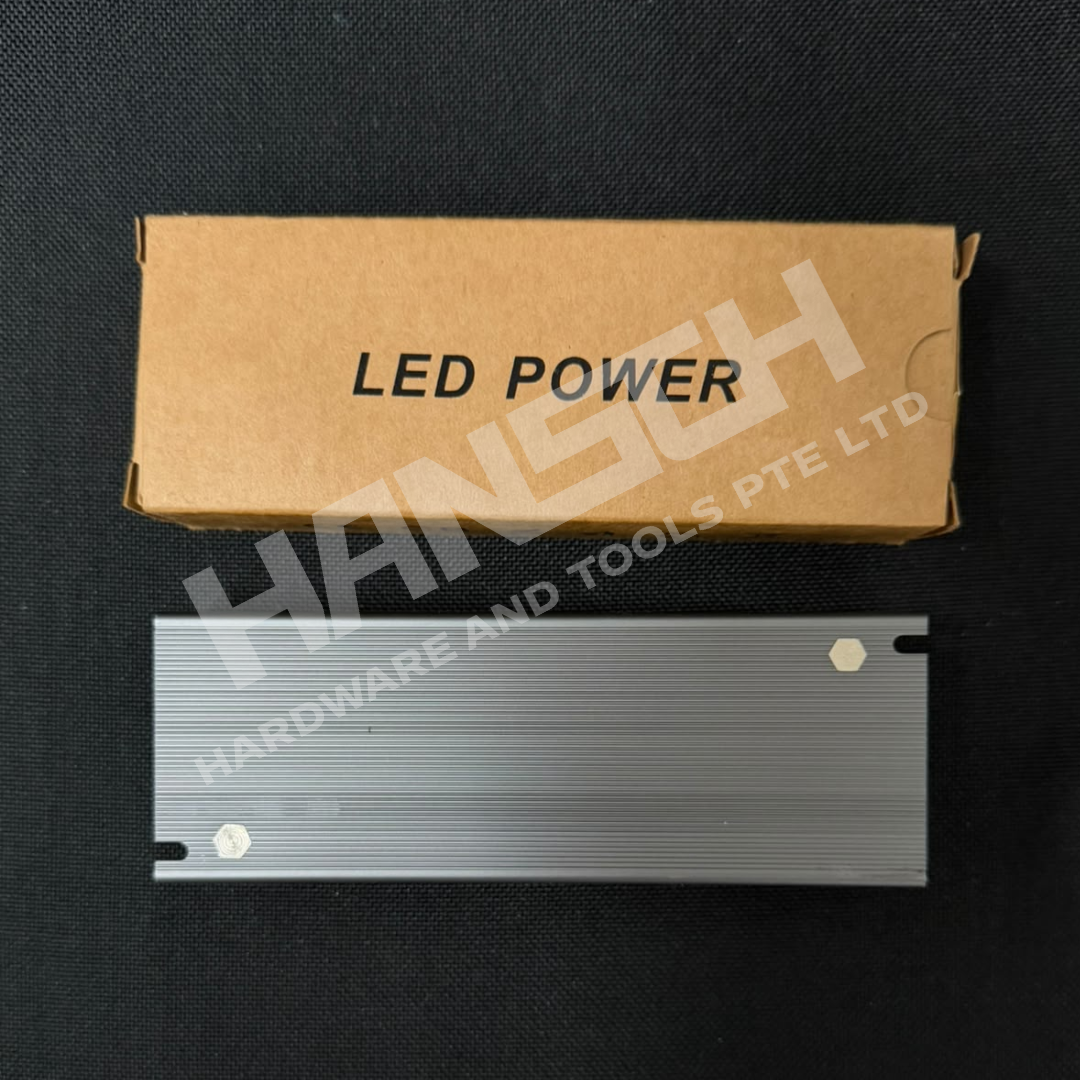

Metal Enclosure: Features a ribbed metal housing with ventilation openings.

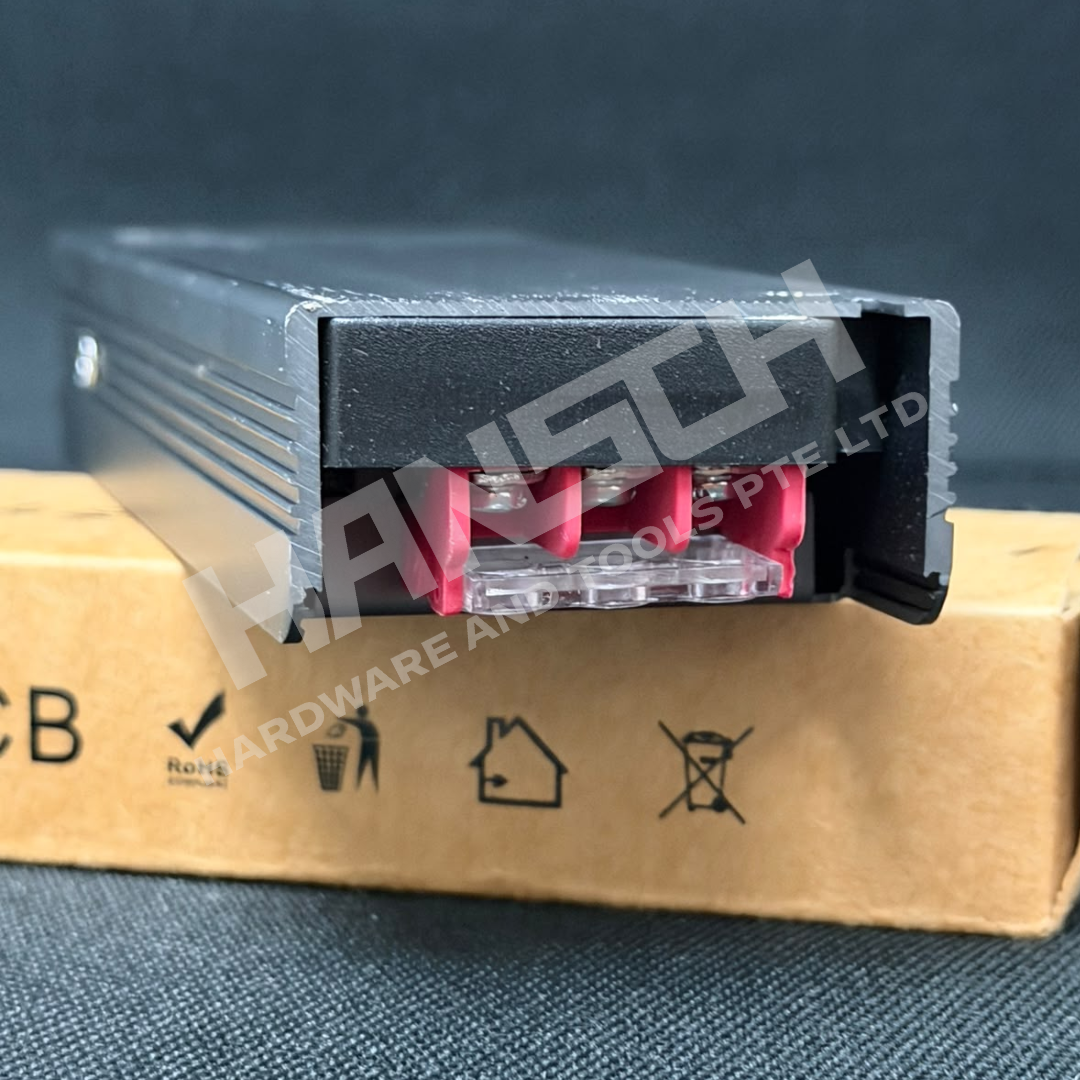

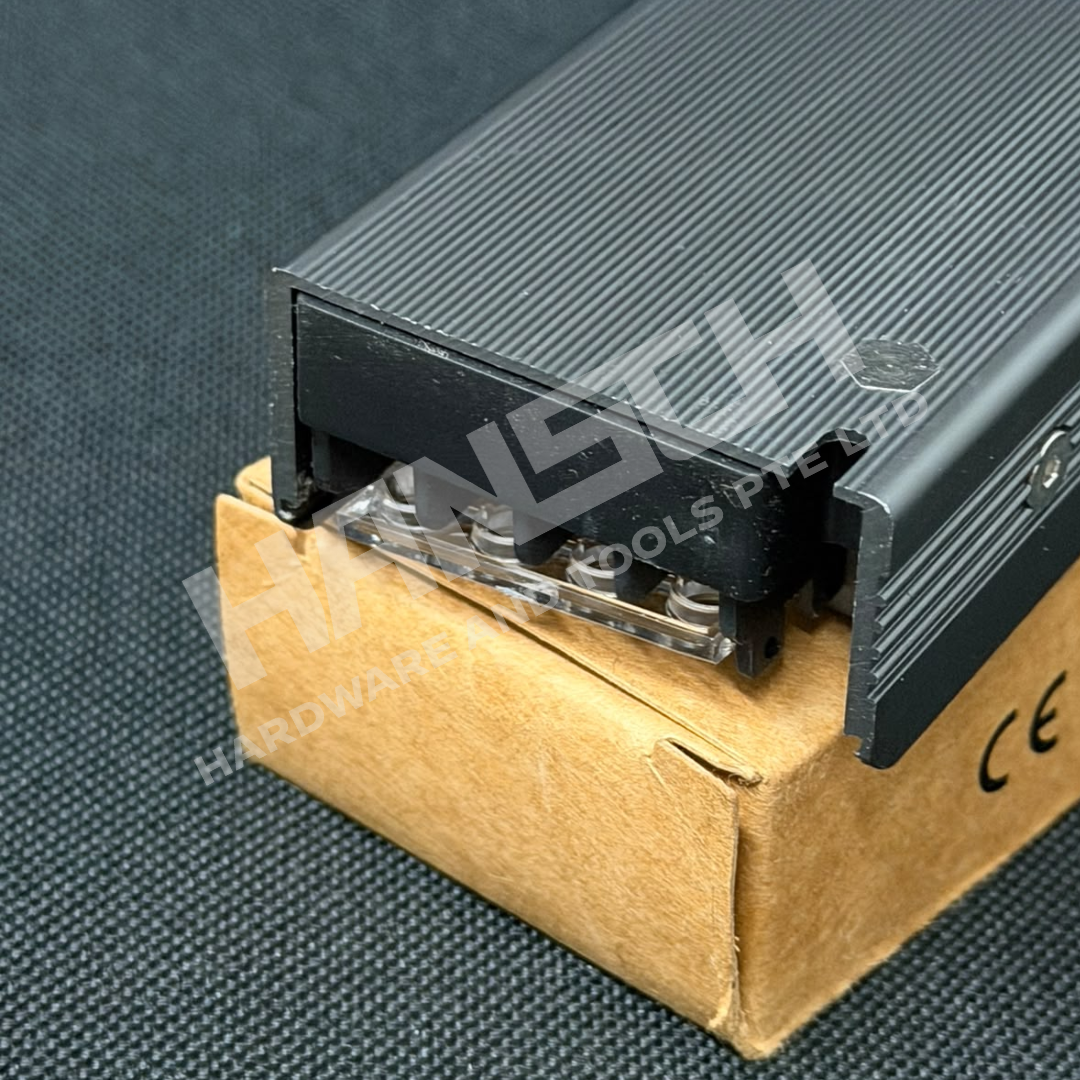

Screw Terminal Connections: Separate terminals for AC input and DC output wiring.
Mounting Slots: Integrated mounting points for securing the unit during installation.
| Brand | EMLED |
|---|---|
| Product Type | LED Switching Power Supply |
| Model | WM-100-24-CO-XW |
| Rated Power | 100W |
| Input Voltage | 175–265V AC |
| Input Frequency | 50/60Hz |
| Output Voltage | 24V DC |
| Maximum Output Current | 4.17A |
| Output Type | Constant Voltage |
| Housing | Metal Enclosure |
| Connection Type | Screw Terminals |
| Terminal Configuration | 4 DC Output Terminals, 3 AC Input Terminals |
