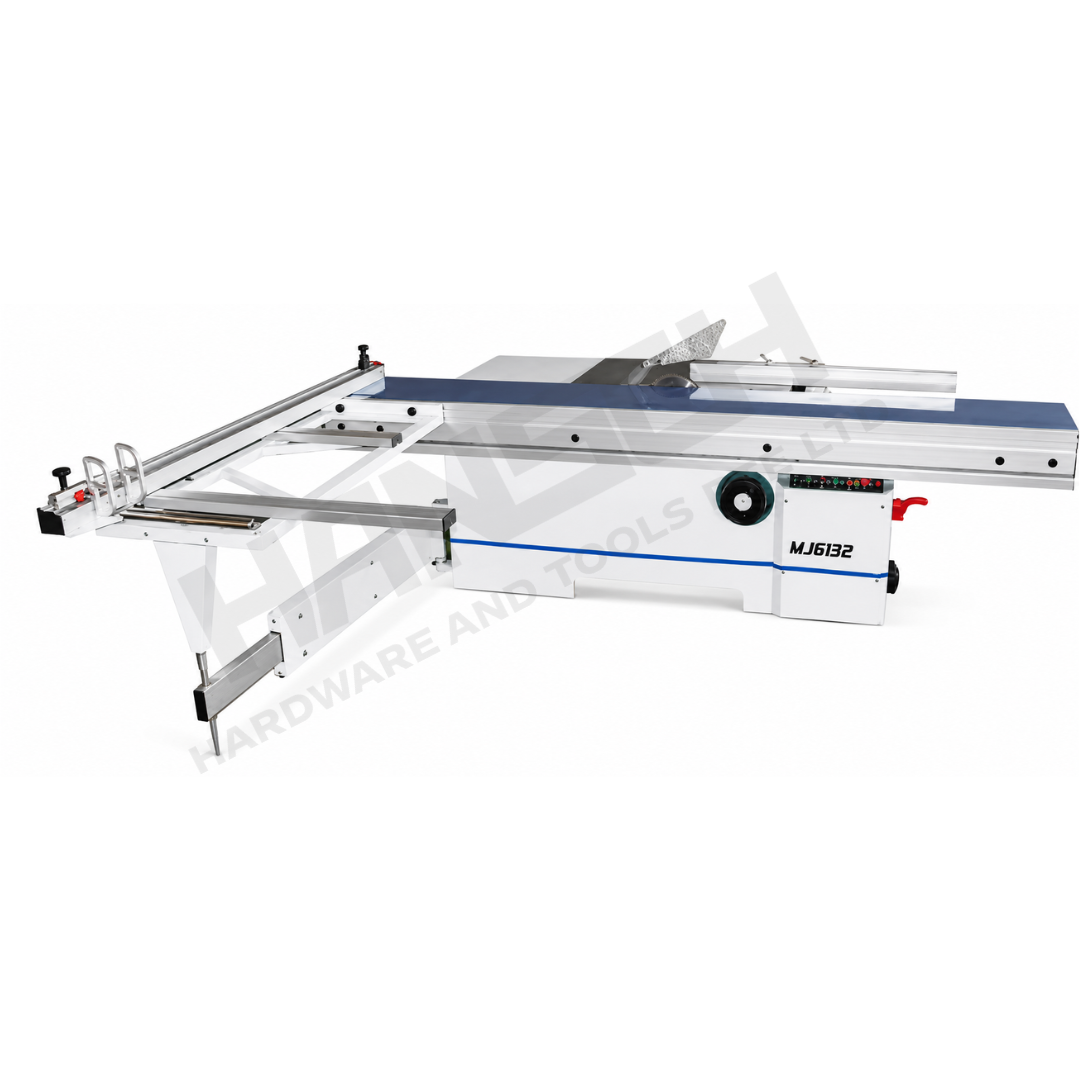

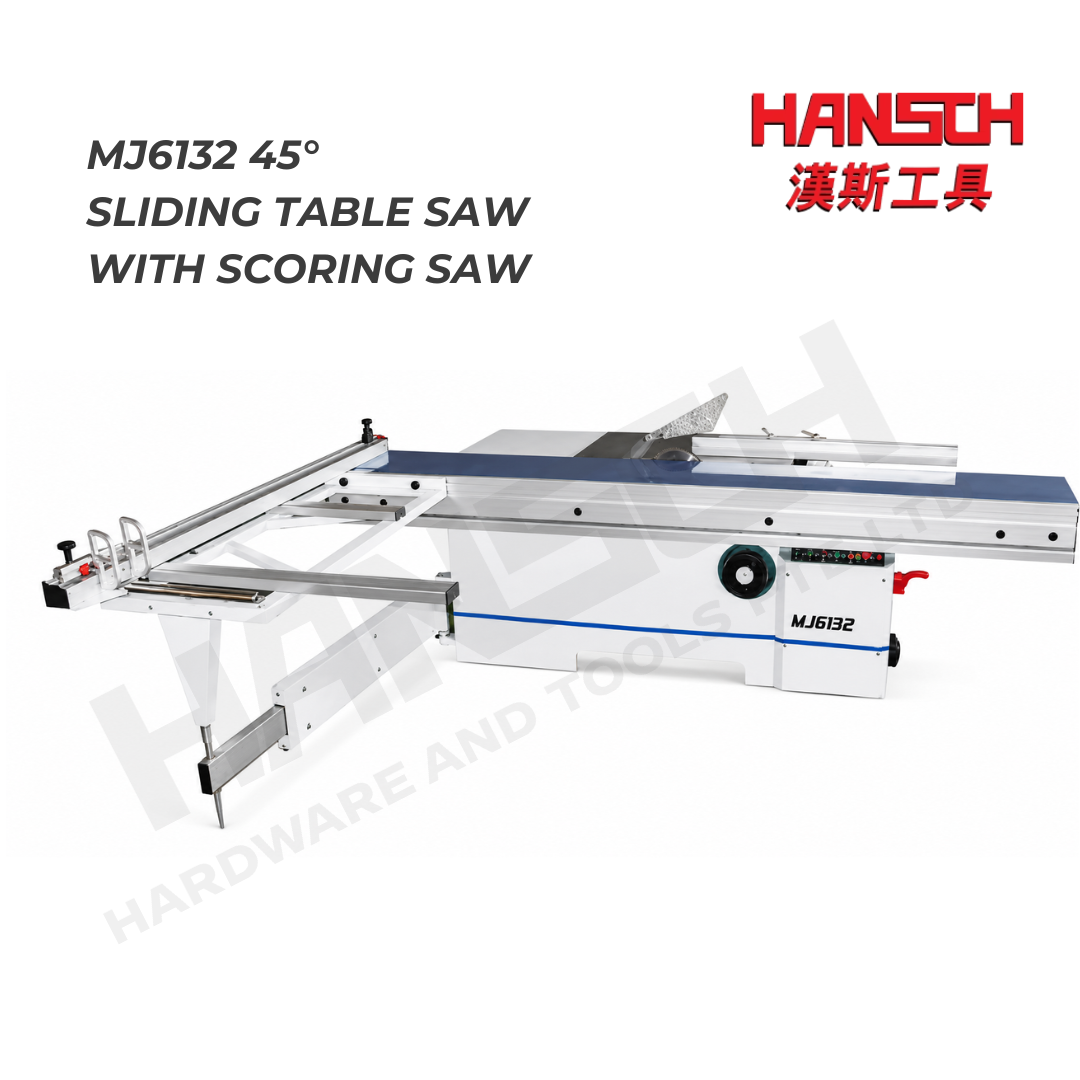

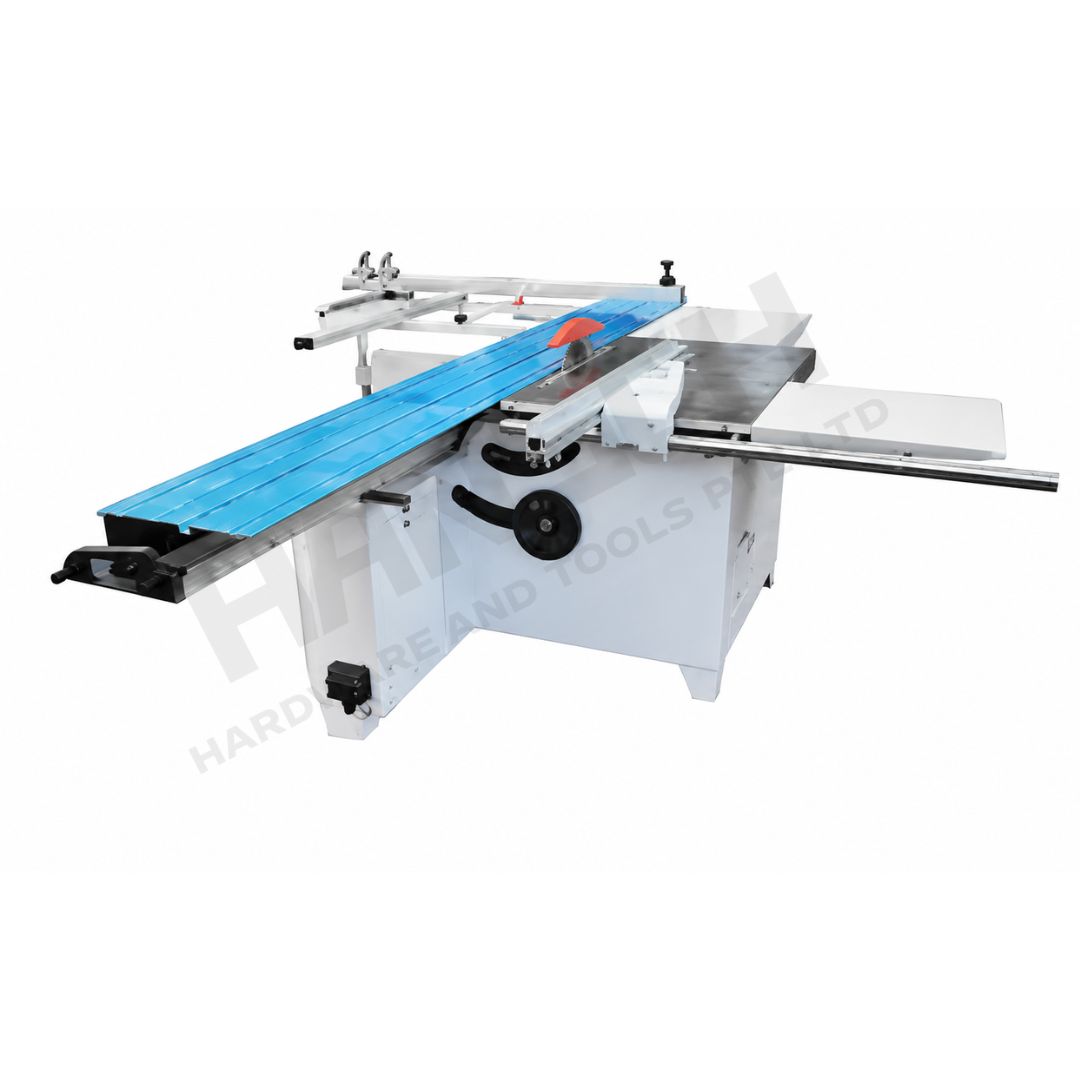

G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片
G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片
G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片

G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片

Designed for accurate and efficient cutting of MDF, particleboard, wood-based panels, ABS panels, PVC panels, plexiglass and...
Availability: In Stock
$0.00
$0.00
Please hurry! Only 99 left in stock
Subtotal: $0.00
Ask an expert

Free Shipping

Free standard shipping on orders over $150

G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片

G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片

$0.00
G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片
G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片
G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片

G-FORCE MJ6132 45° Precision Sliding Table Panel Saw with Scoring Saw 3.2M 精密推台锯 推台锯 带预切锯片

$0.00
Description

Designed for accurate and efficient cutting of MDF, particleboard, wood-based panels, ABS panels, PVC panels, plexiglass and solid wood materials. It features a smooth sliding worktable, scoring saw system and adjustable 0–45° blade angle for versatile panel cutting. The high-strength aluminium alloy guide rail provides stable movement and precise positioning, making the machine suitable for woodworking workshops, furniture production and panel processing applications.



Available in 2.8m, 3.0m and 3.2m sliding table lengths. Please contact us for more information.

Specification

Technical Specifications

Model MJ6132
Sliding Table Dimensions L: 2.8M / 3.0M / 3.2M × W: 375mm
Maximum Sawing Length 2.8M / 3.0M / 3.2M
Maximum Sawing Width Not Limited
Saw Blade Diameter Main Saw: 300mm / Scoring Saw: 120mm
Maximum Sawing Thickness 80mm
Main Saw Speed 4500–6000 r/min
Saw Blade Angle 0–45°
Main Motor Power 5.5kW
Spindle Diameter 30mm
Countershaft Diameter 20mm
Auxiliary Motor Power 0.75kW
Net Weight 800kg
Overall Dimensions L: 2.8M / 3.0M / 3.2M / 3.8M × W: 90cm × H: 1M
Features

Product Features

  • Wide Material Compatibility: Suitable for MDF, particleboard, wood-based panels, ABS panels, PVC panels, plexiglass, solid wood and other woodworking materials.
  • Precision Sliding Table: Smooth movable worktable allows easier feeding and accurate panel cutting.
  • Main & Scoring Saw System: The scoring saw pre-cuts the material before the main blade for improved cutting quality.
  • 0–45° Blade Adjustment: Adjustable saw blade angle supports both straight and angled cutting applications.
  • Variable Main Saw Speed: Main saw operates from 4500–6000 r/min to suit different cutting requirements.
  • High-Strength Guide Rail: Made with high-strength extruded aluminium alloy for stable movement and resistance to deformation.
  • Accurate Positioning: Designed for high positioning accuracy and consistent cutting performance.
  • Durable Work Surface: Oxidation-treated table surface provides improved wear resistance.
  • Easy Manual Feeding: Sliding table design helps reduce operator effort during panel feeding and cutting.
  • Multiple Table Lengths: Available in 2.8M, 3.0M and 3.2M sliding table options.
