The W6D 45° Electric Lifting Precision Sliding Table Saw is designed for accurate and efficient cutting of...
Availability: In Stock
$0.00
$0.00
Please hurry! Only 99 left in stock
Subtotal: $0.00
Ask an expert

Free Shipping

Free standard shipping on orders over $150

G-FORCE W6D 45° Electric Lifting Precision Sliding Table Saw Woodworking Panel Cutting Machine 电动升降 木工推台锯

G-FORCE W6D 45° Electric Lifting Precision Sliding Table Saw Woodworking Panel Cutting Machine 电动升降 木工推台锯

$0.00
G-FORCE W6D 45° Electric Lifting Precision Sliding Table Saw Woodworking Panel Cutting Machine 电动升降 木工推台锯
G-FORCE W6D 45° Electric Lifting Precision Sliding Table Saw Woodworking Panel Cutting Machine 电动升降 木工推台锯
G-FORCE W6D 45° Electric Lifting Precision Sliding Table Saw Woodworking Panel Cutting Machine 电动升降 木工推台锯
G-FORCE W6D 45° Electric Lifting Precision Sliding Table Saw Woodworking Panel Cutting Machine 电动升降 木工推台锯
G-FORCE W6D 45° Electric Lifting Precision Sliding Table Saw Woodworking Panel Cutting Machine 电动升降 木工推台锯

G-FORCE W6D 45° Electric Lifting Precision Sliding Table Saw Woodworking Panel Cutting Machine 电动升降 木工推台锯

$0.00
Description

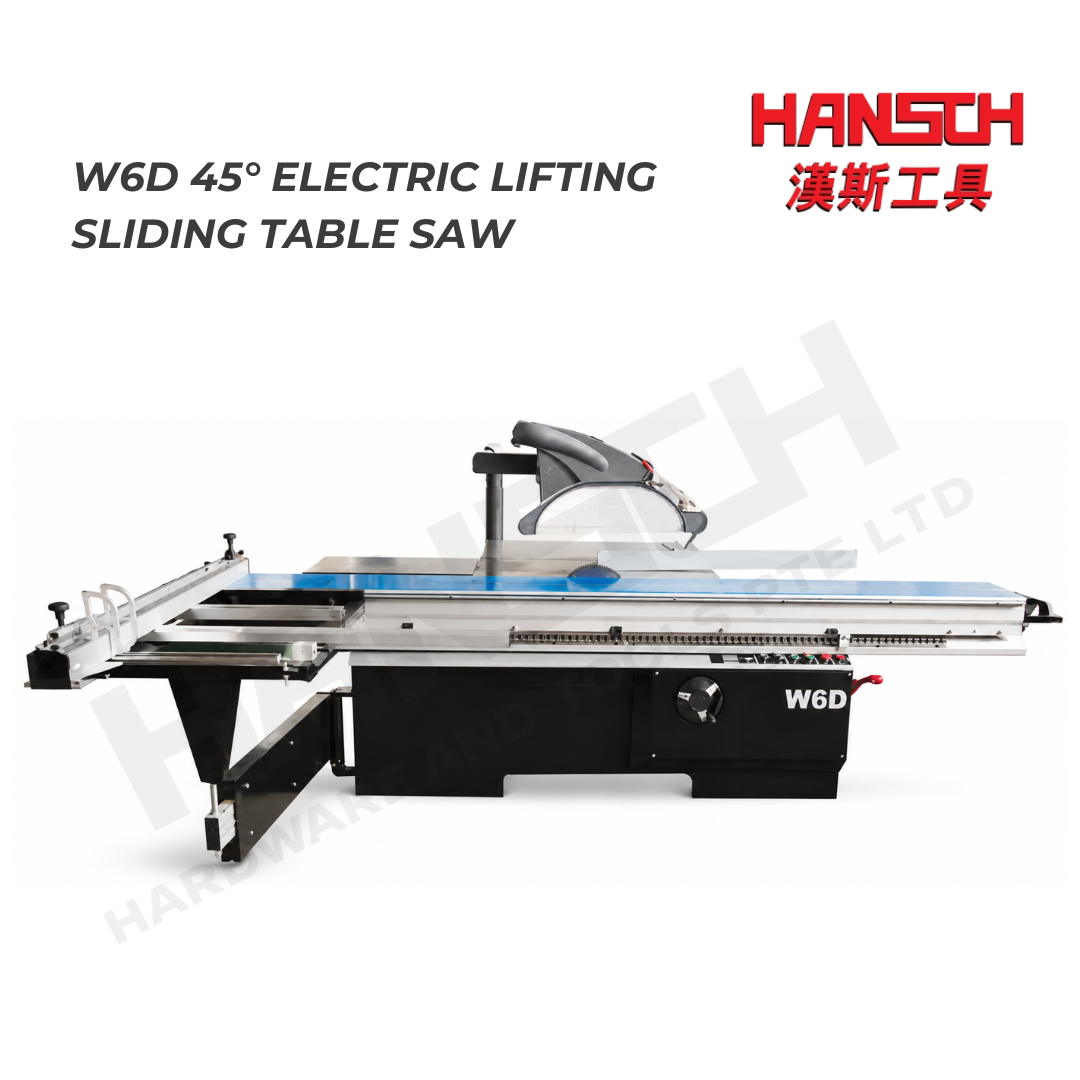

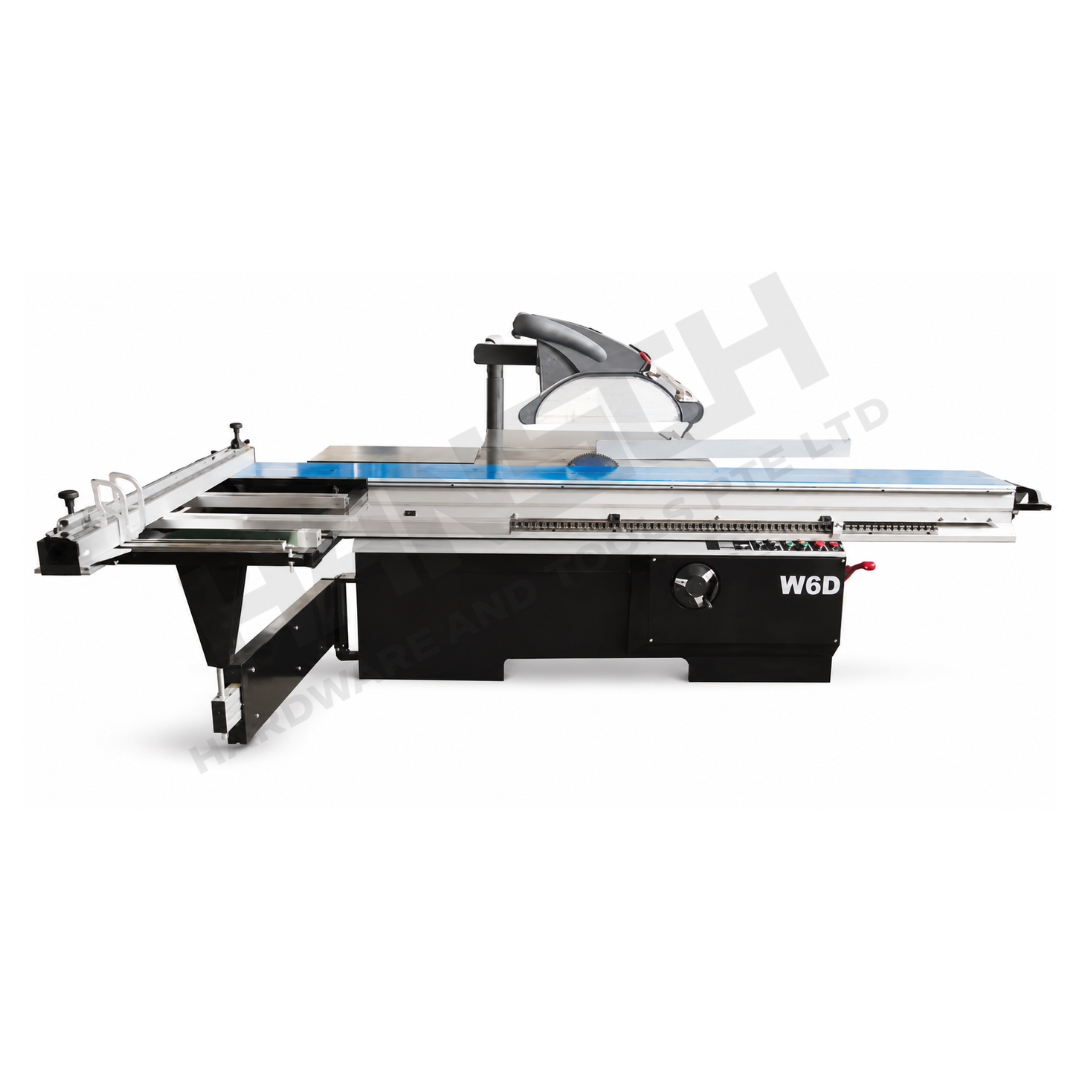

The W6D 45° Electric Lifting Precision Sliding Table Saw is designed for accurate and efficient cutting of MDF, particleboard, wood-based panels, ABS panels, PVC panels, plexiglass, solid wood and other similar materials. Equipped with a movable sliding table, high-strength aluminium alloy guide rail and adjustable main saw speed, it provides smooth feeding, precise positioning and reliable cutting performance. The saw blade supports a 0–45° cutting angle, making the machine suitable for a variety of woodworking and panel-processing applications.

Specification

Technical Specifications

Model W6D
Sliding Table Dimensions Length: 3.0m / 3.2m; Width: 390mm
Maximum Sawing Length 3.0m / 3.2m
Maximum Sawing Width Unrestricted
Saw Blade Diameter Main Saw: 300mm; Scoring Saw: 120mm
Maximum Sawing Thickness 80mm
Main Saw Speed 4500–6000 r/min
Lifting Motor Power 6000N
Saw Blade Angle 0–45°
Main Motor Power 5.5kW
Spindle Diameter 30mm
Countershaft Diameter 20mm
Auxiliary Motor Power 0.75kW
Net Weight 850kg
Overall Dimensions Length: 3.0m / 3.2m / 3.8m × Width: 90cm × Height: 1.0m
Features

Product Features

  • 45° Adjustable Saw Blade: Supports saw blade angles from 0° to 45° for straight and angled cutting applications.

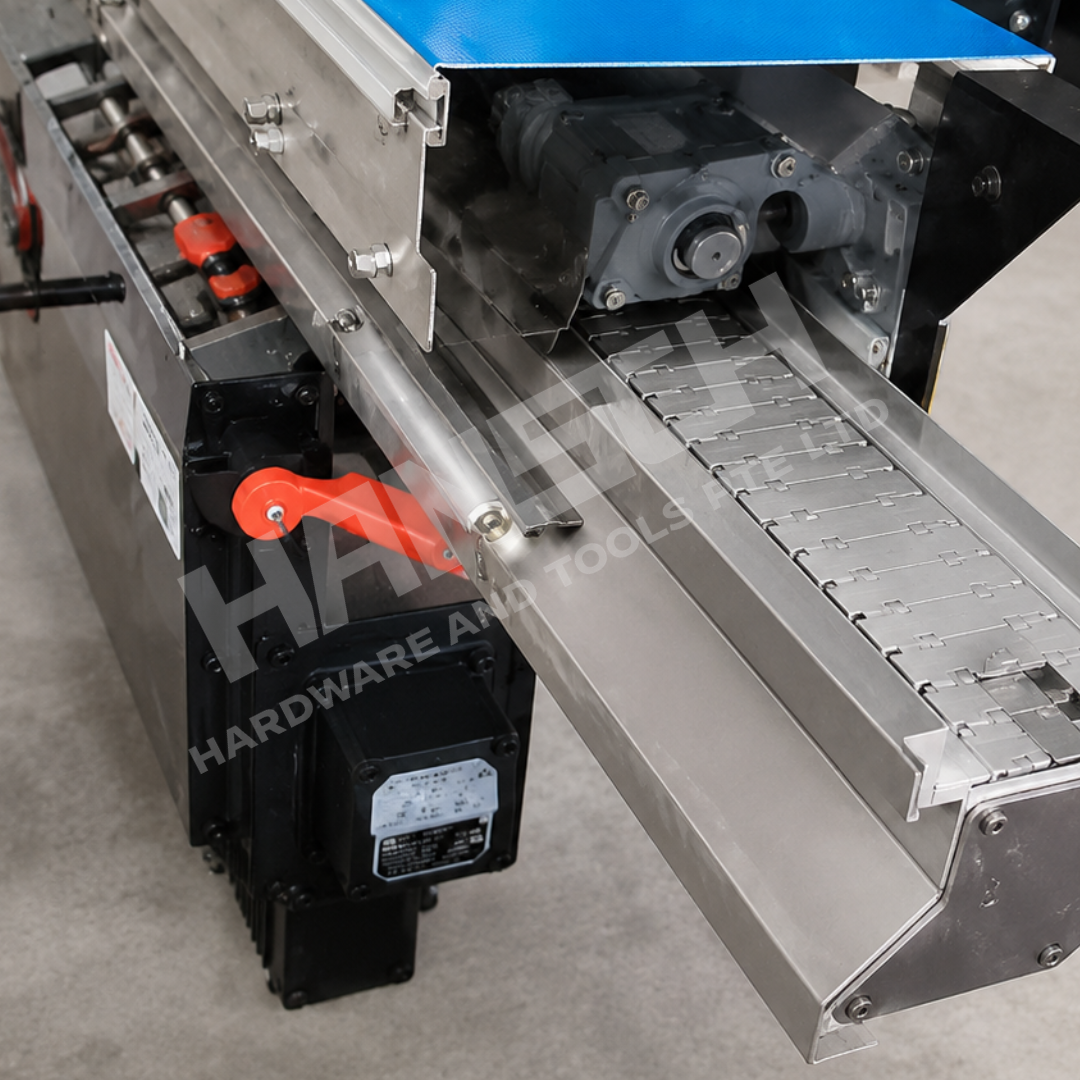

  • Electric Lifting System: Equipped with an electric lifting mechanism for convenient machine adjustment.
  • Precision Sliding Table: Movable worktable allows smooth feeding of workpieces for accurate and efficient cutting.
  • Variable Main Saw Speed: Main saw operates from 4500 to 6000 r/min to accommodate different cutting requirements.
  • High-Strength Guide Rail: Sliding table guide rail is constructed from high-strength extruded aluminium alloy for excellent rigidity and positioning accuracy.
  • Durable Construction: Designed with a high-strength, non-deformation structure for stable operation.
  • Wear-Resistant Table Surface: Oxidation-treated table surface provides improved durability and wear resistance.
  • Wide Material Compatibility: Suitable for MDF, particleboard, wood-based panels, ABS panels, PVC panels, plexiglass and solid wood.
  • High Cutting Precision: Smooth manual feeding and accurate positioning help achieve consistent cutting quality.
