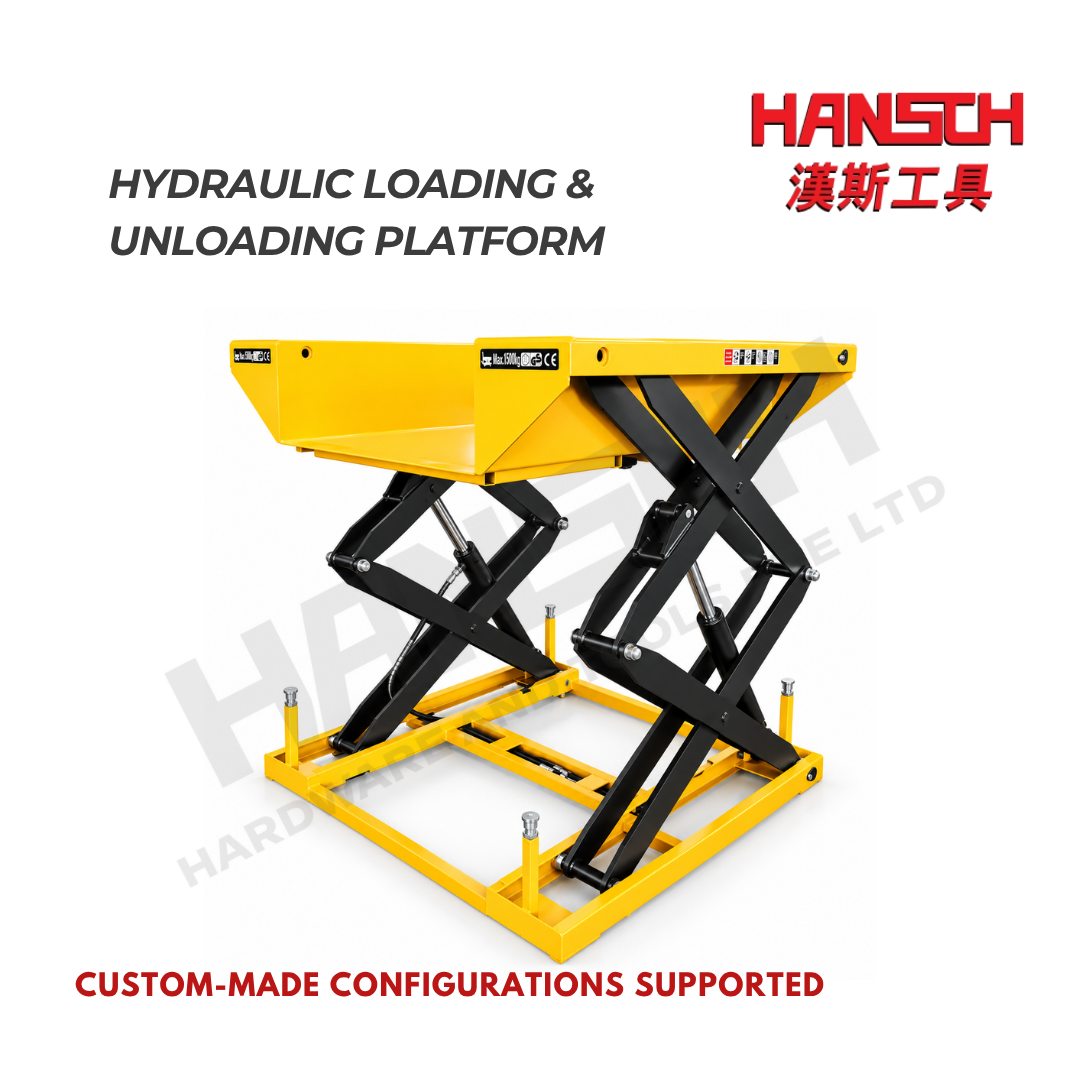

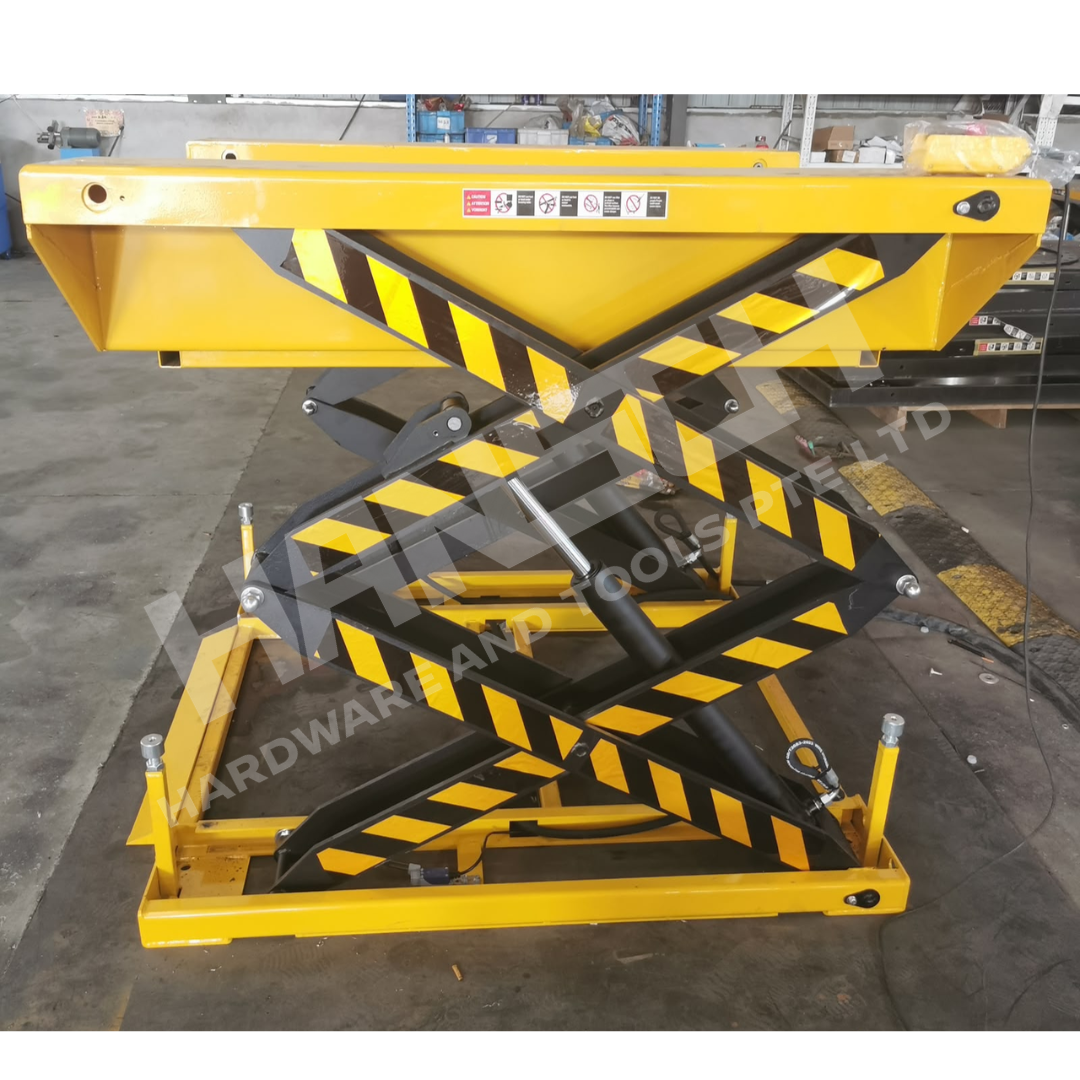

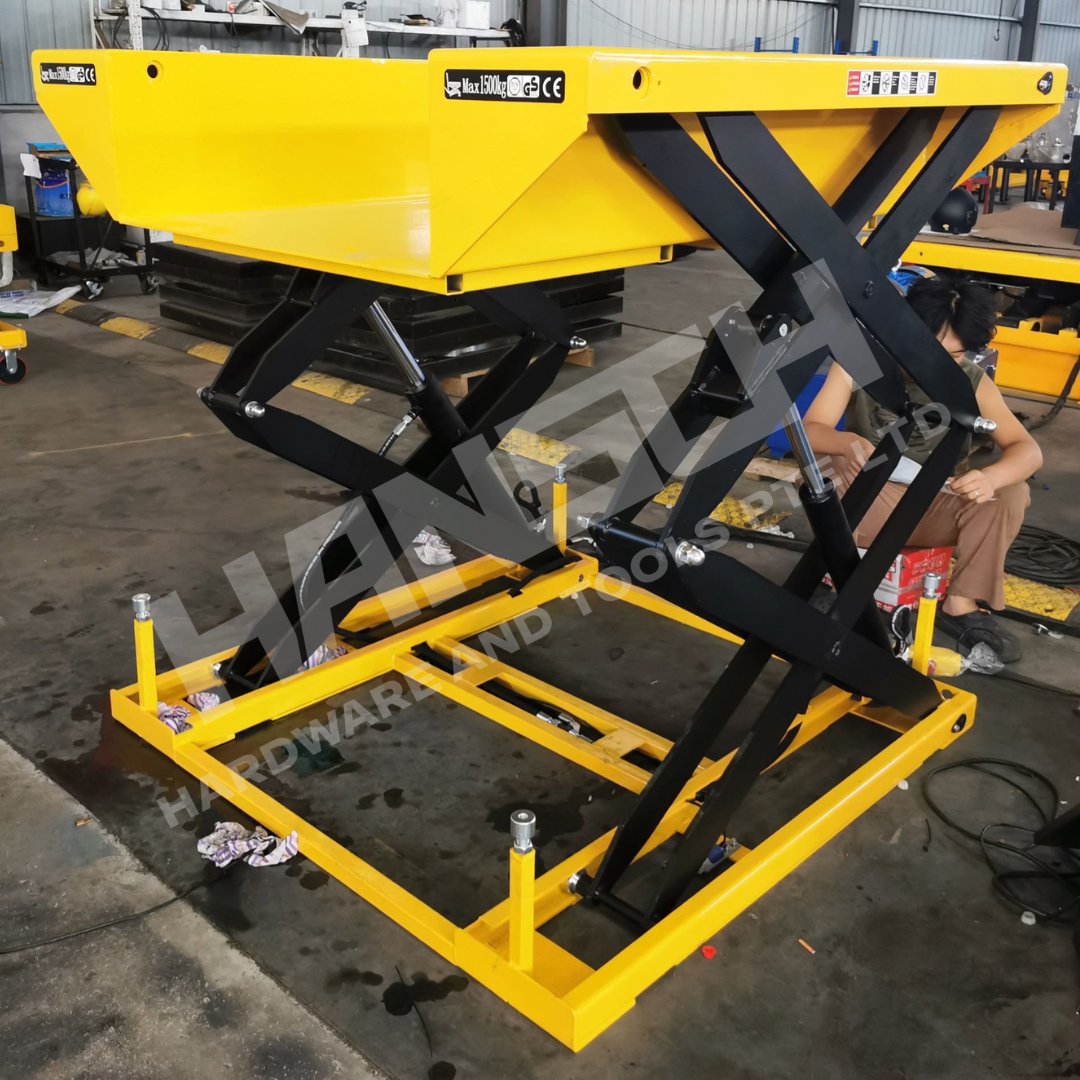

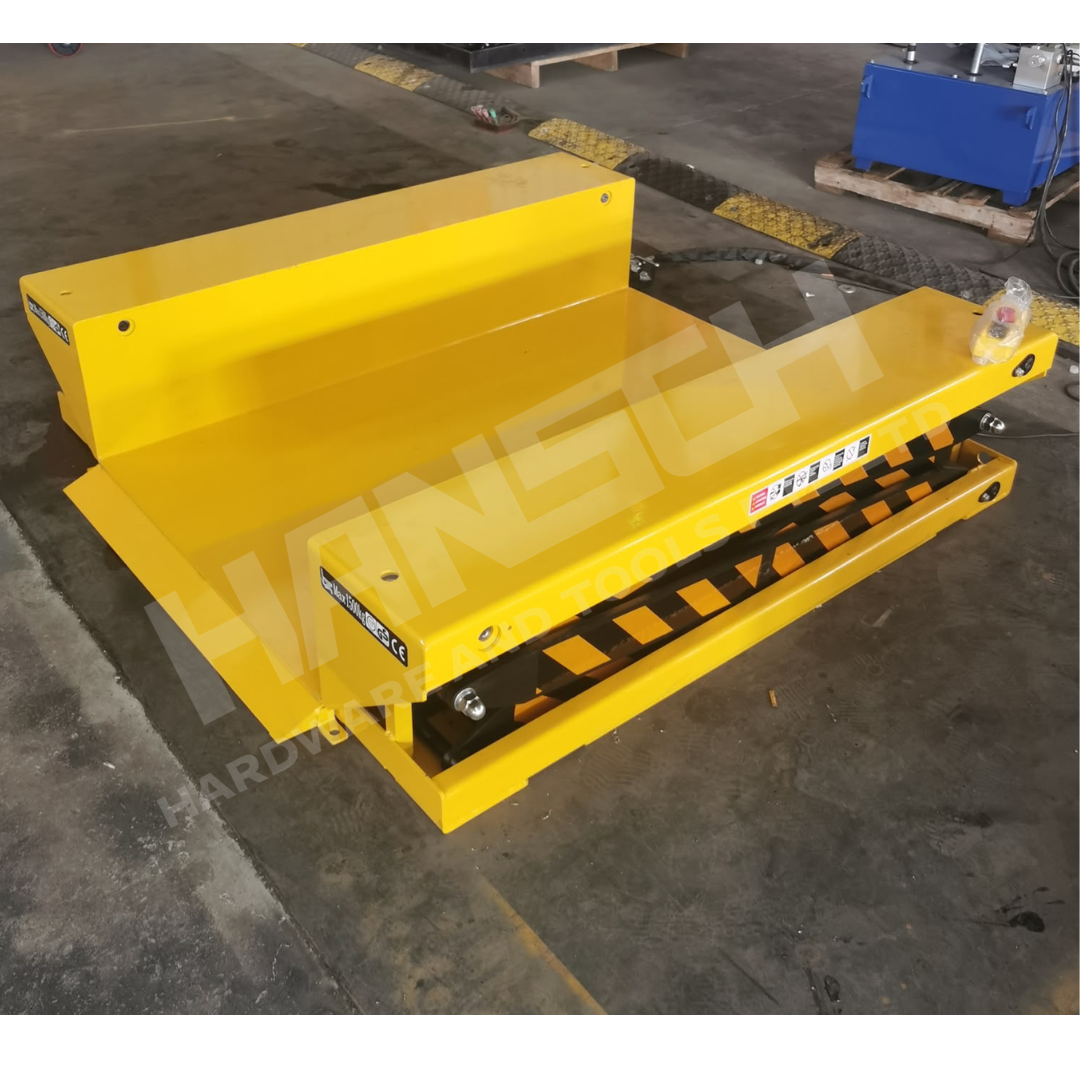

Designed for industrial loading, unloading and material-handling applications.
With a rated load capacity of 1500 kg, the platform uses a double-scissor lifting structure to raise and lower goods between different working heights. It is suitable for installation at loading areas, warehouses, factories, workshops and other locations where materials need to be transferred safely between different levels.
The platform is powered by an external 230V single-phase, 2.2 kW motor and operated using a push-button control system.
The standard configuration features an overall dimension of 1500 × 1500 mm, a working surface of 1500 × 900 mm, a minimum platform height of 50 mm, and a maximum platform height of 1600 mm.
Custom-made configurations are supported, allowing the platform design to be adapted according to project requirements.
| Model | ZHY1500 |
| Product Type | Hydraulic Double Scissor Lift Table |
| Load Capacity | 1500 kg |
| Overall Dimension | 1500 mm × 1500 mm |
| Working Surface | 1500 mm × 900 mm |
| Top Plate Thickness | 6 mm |
| Base Plate Thickness | 6 mm |
| Minimum Platform Height | 50 mm |
| Maximum Platform Height | 1600 mm |
| Side Height Range | 360–1960 mm |
| Scissor Type | Double Scissor |
| Scissor Arm Size | 100 × 12 mm Solid Flat Steel |
| Hydraulic Cylinder | One-to-One Configuration |
| Motor | 230 V Single Phase / 2.2 kW External Unit |
| Control System | Push Button Control |

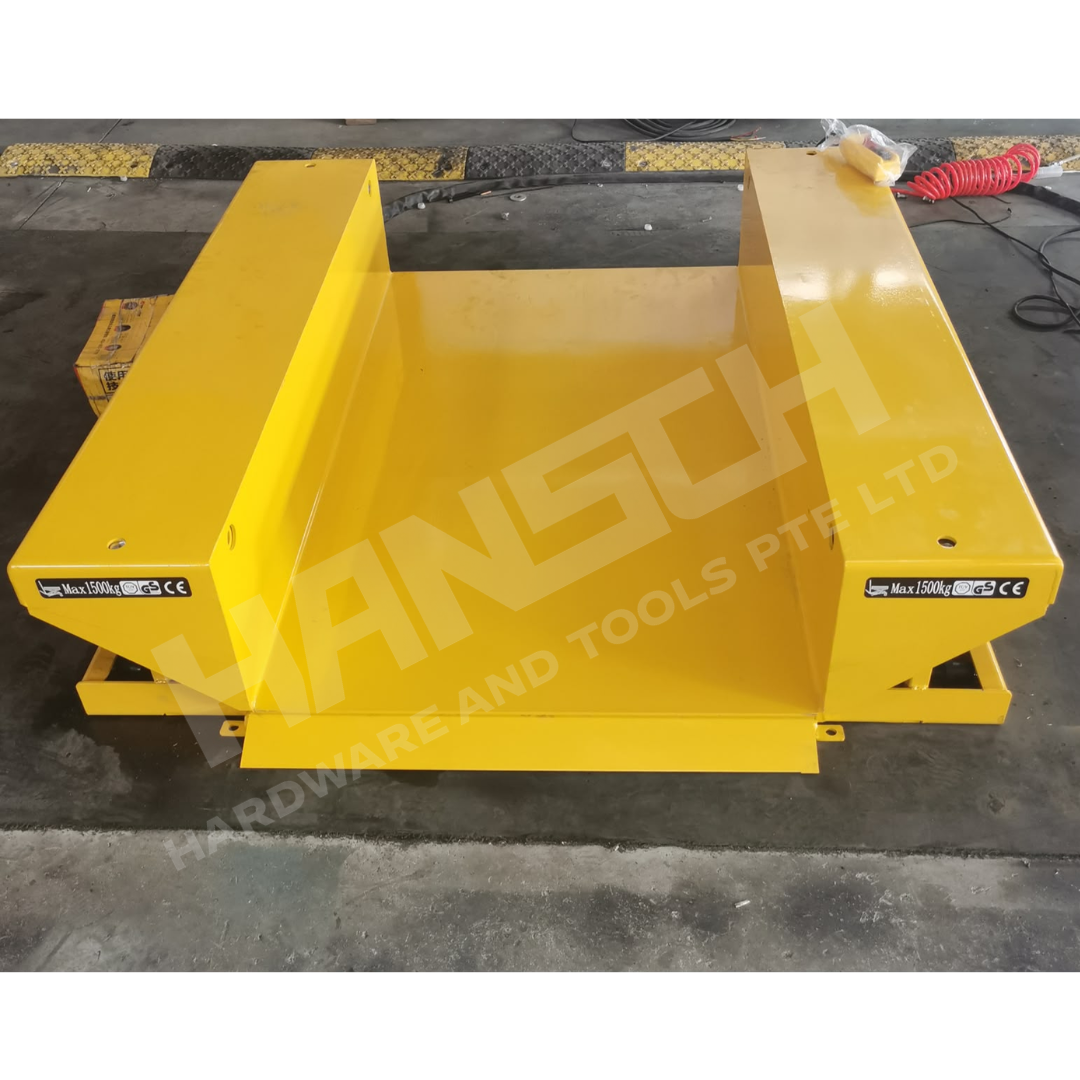

| Additional Design | Small inclined plate provided at the working surface opening |
