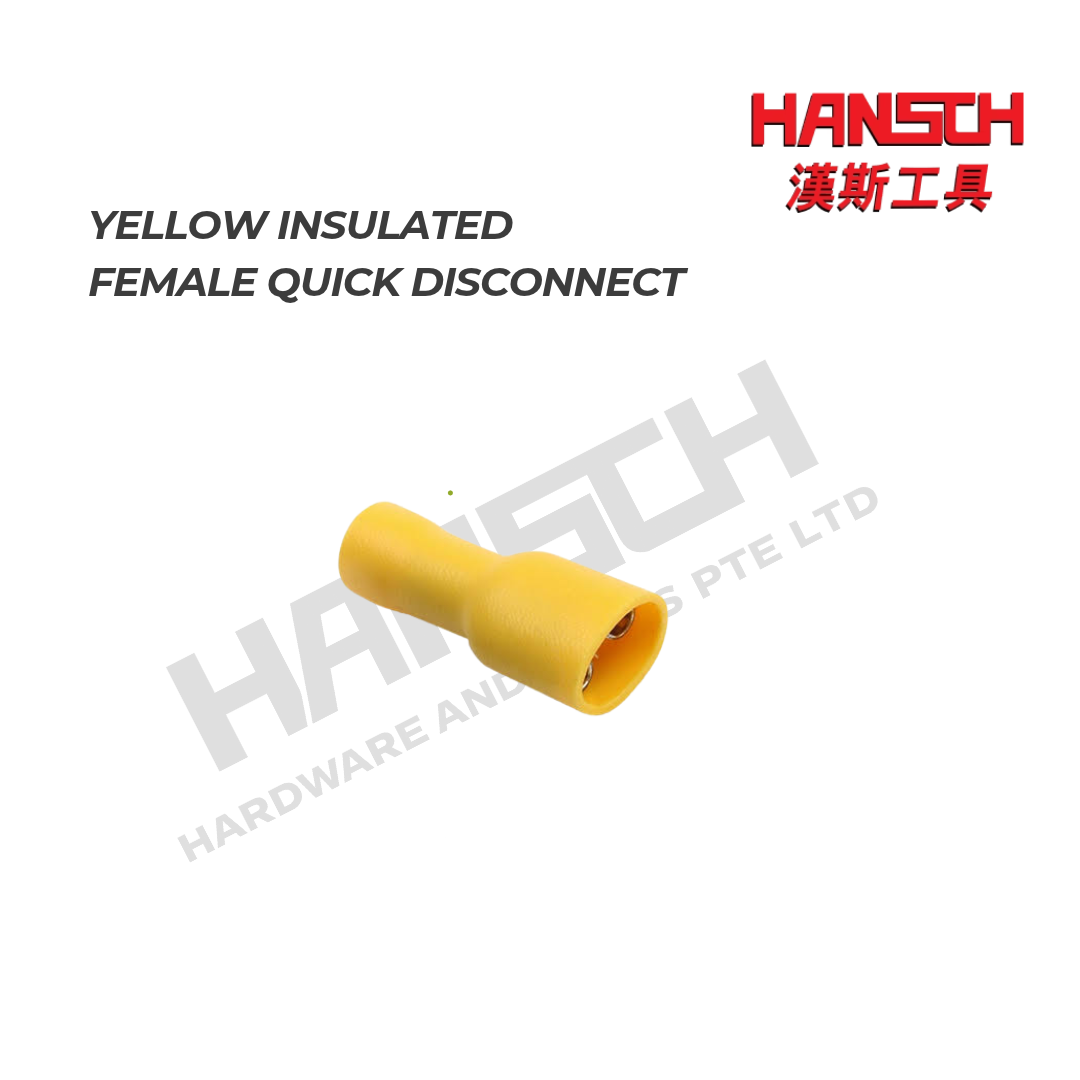

The FDFD5-250 Fully Insulated Female Quick Disconnect Terminal is designed for electrical wire connections, allowing compatible male and female terminals to be connected and disconnected without damaging the terminal or insulation during normal use.
Constructed with a brass contact and yellow PVC insulation, this terminal is designed for 12–10 AWG wires. The double crimp design secures the wire connection while providing insulation around the terminal.
Suitable for electrical wiring, assembly and maintenance applications requiring detachable electrical connections.

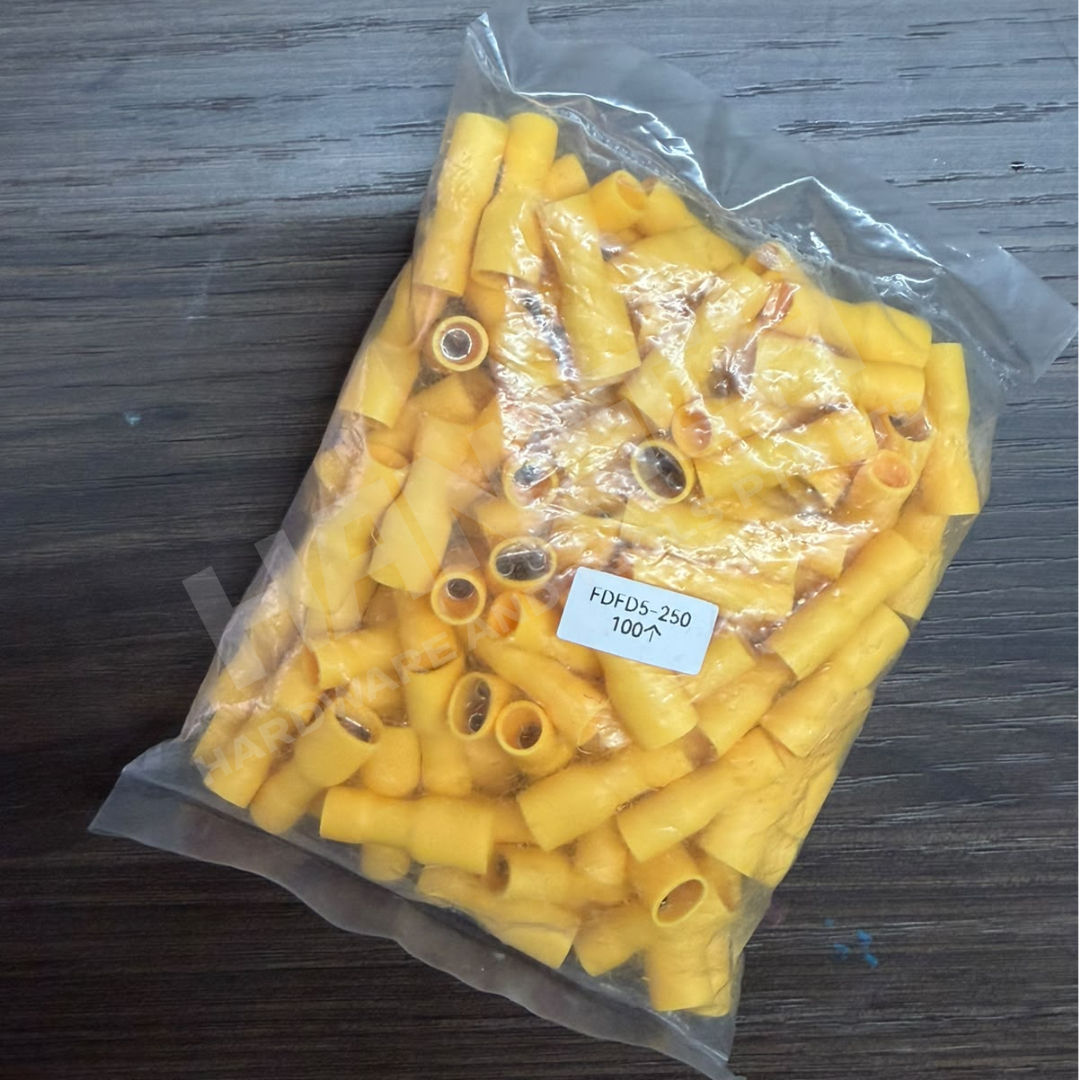

Supplied in a pack of 100 pieces.
Fully Insulated Design: Yellow PVC insulation covers the female terminal for electrical protection.
Quick Disconnect Connection: Allows easy connection and disconnection with a compatible male terminal.
12–10 AWG Wire Compatibility: Designed for use with the specified wire size.
Brass Construction: Brass contact provides electrical conductivity.
Double Crimp Design: Provides crimping support for the conductor and insulation.
Electrical Rating: Rated up to 600V, 24A and 105°C, according to the supplied specifications.
Bulk Packaging: 100 pieces per pack.
| Model | FDFD5-250 |
| Product Type | Fully Insulated Female Quick Disconnect Terminal |
| Wire Size | 12-10 AWG |
| Terminal Type | Female Quick Disconnect |
| Crimp Type | Double Crimp |
| Insulation | Vinyl (PVC) |
| Colour | Yellow |
| Contact Material | Brass |
| Stud Size (As Supplied) | 1/2" |
| Length (L) | 24.2 mm |
| Dimension (F) | 7.5 mm |
| Width (W) | 6.6 mm |
| Thickness (T) | 0.4 mm |
| Dimension (B) | 12.5 mm |
| Dimension (D) | 6.2 mm |
| Dimension (C) | 3.4 mm |
| Maximum Electrical Rating | 600V |
| Maximum Operating Temperature | 105°C |
| Maximum Electrical Current | 24A |
| Quantity | 100 Pieces / Pack |
