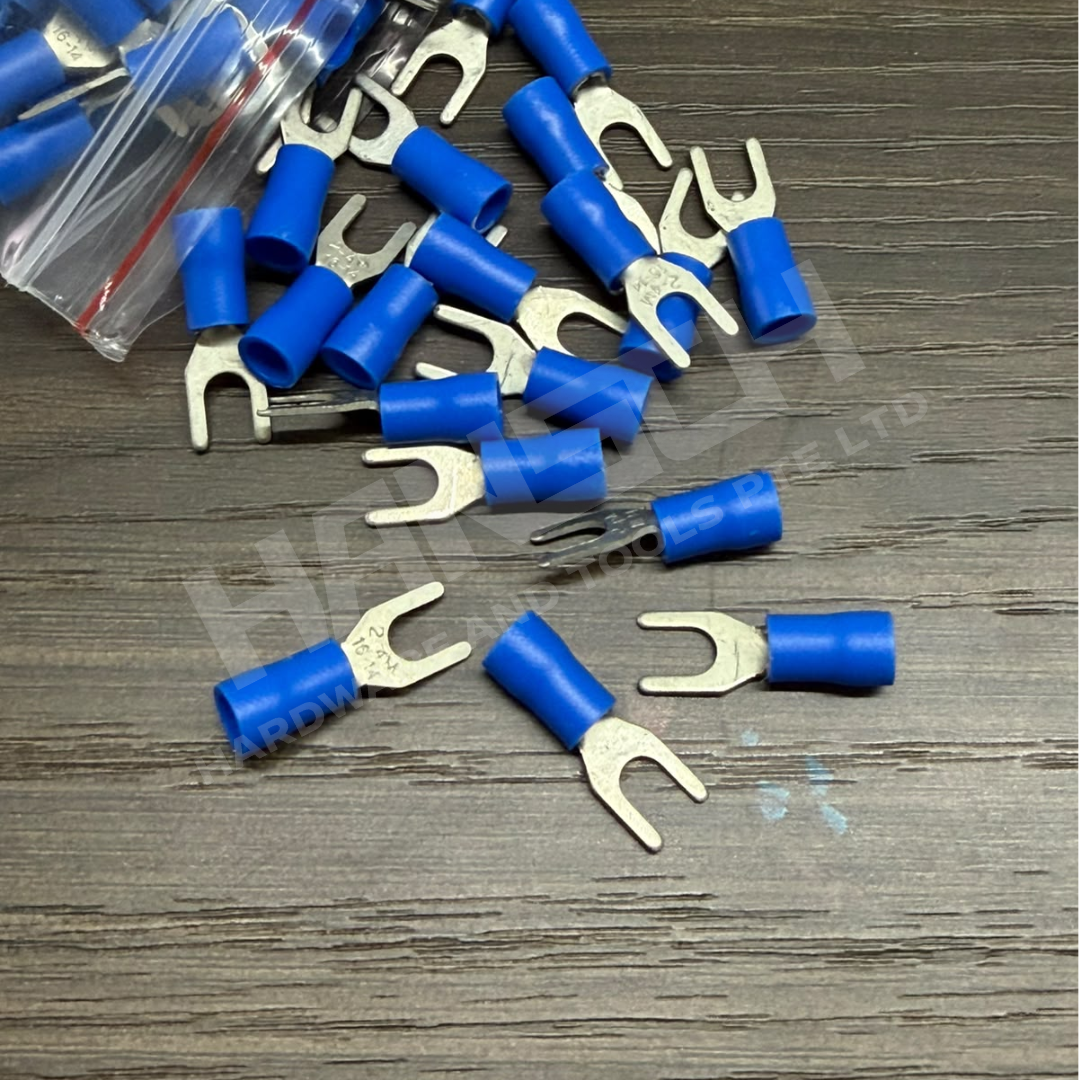

Blue Insulated Fork Spade Crimp Terminals are designed for connecting electrical wires to compatible screw-type terminal connections.
Featuring a U-shaped metal fork and blue insulating sleeve, these terminals allow wires to be secured under terminal screws without completely removing the screws during installation.
Designed for use with 16–14 AWG (1.5–2.5mm²) electrical wires, these terminals are suitable for general electrical wiring, equipment maintenance and cable termination applications.
Fork Spade U-Type Design: Allows connection to compatible screw-type terminals.
Blue Insulating Sleeve: Provides insulation around the wire crimp connection area.
Crimp Connection: Designed for solderless wire termination using a suitable crimping tool.
Convenient Installation: Fork-shaped design allows fitting under loosened terminal screws.
Electrical Conductivity: Metal contact provides an electrical connection between the wire and terminal.
Wire Compatibility: Commonly designed for 16–14 AWG (1.5–2.5mm²) wires.
| Product Type | Insulated Fork Spade Crimp Terminal |
|---|---|
| Terminal Type | Fork / U-Type / Spade |
| Colour | Blue |
| Wire Size | 16–14 AWG (1.5–2.5mm²)* |
| Maximum Current | 27A* |
| Connection Method | Crimp |
| Insulation | Partially Insulated |
| Insulation Colour | Blue |
*Wire range and current rating are typical published specifications for this terminal type and require confirmation against the actual supplied product.
