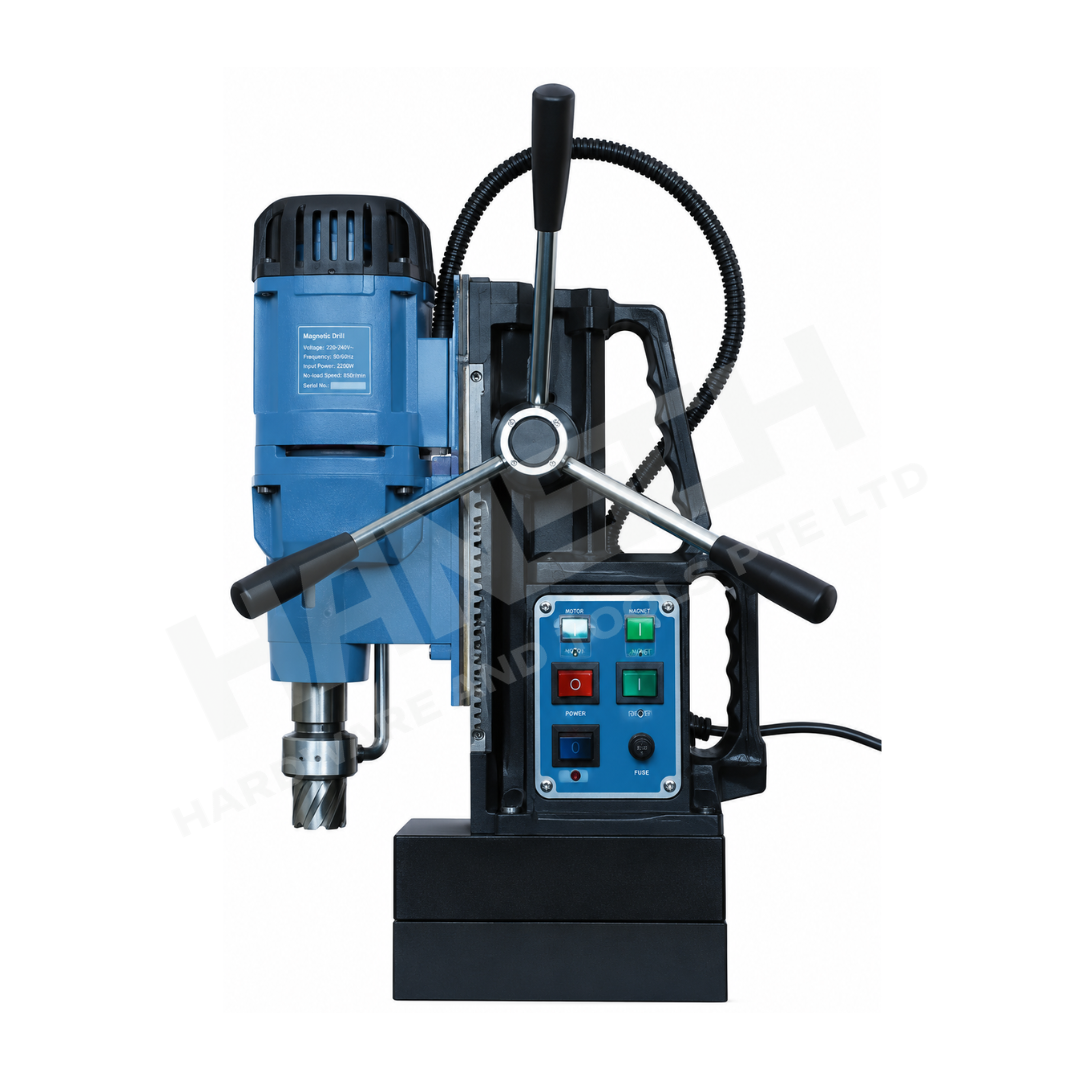

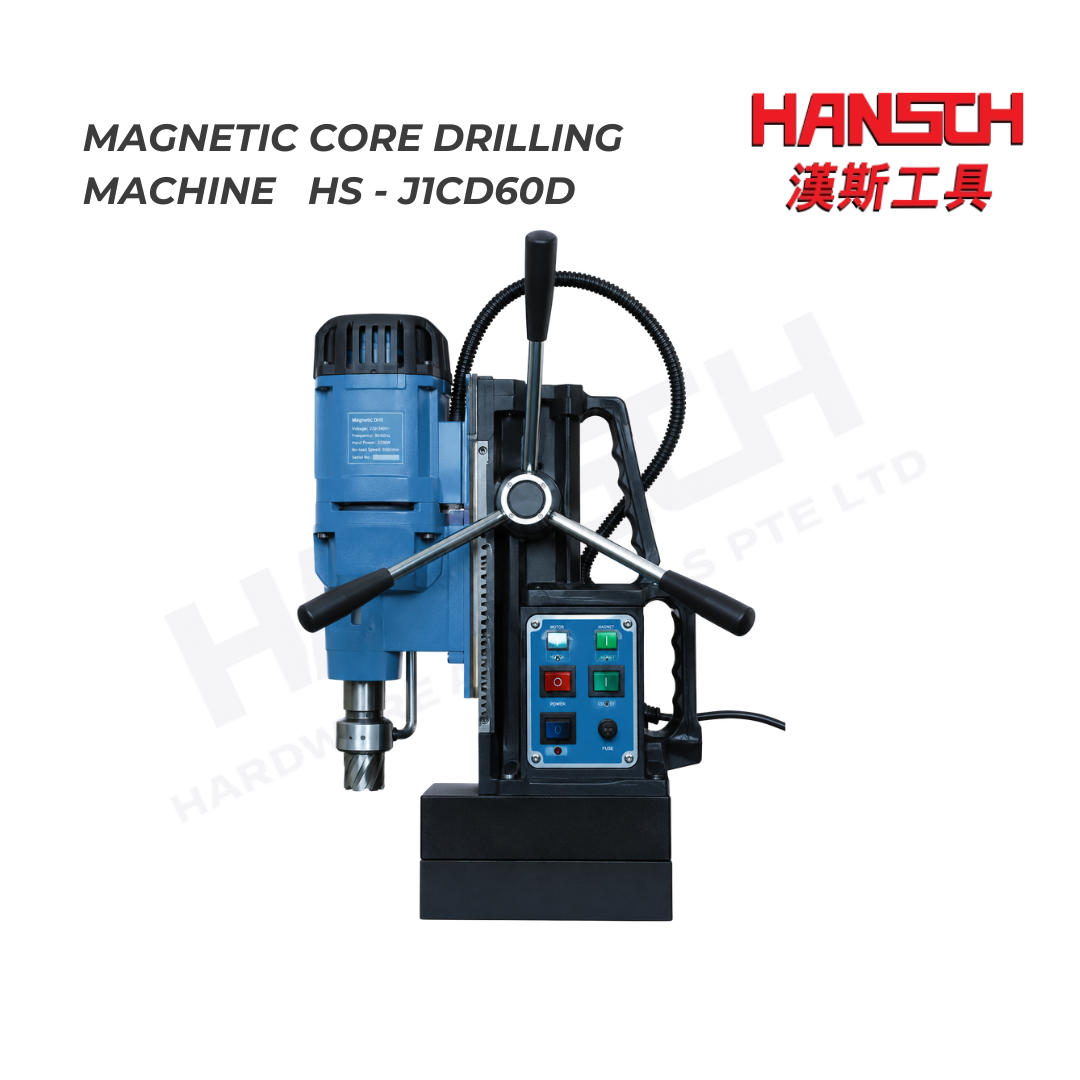

Magnetic Core Drilling Machine (HS-J1CD60D) – 1950W Industrial Magnetic Drill with Internal Cooling 工业级磁座钻孔机

The HS-J1CD60D Magnetic Core Drilling Machine is designed for efficient and precise metal drilling applications. Equipped with a 1950W motor, internal cooling system, and Weldon 19mm spindle taper, it supports core drilling, twist drilling, and tapping operations. The machine delivers a cutting capacity of up to 60mm, 50mm cutting depth, and strong 13,900N magnetic adhesion for secure operation on steel surfaces.

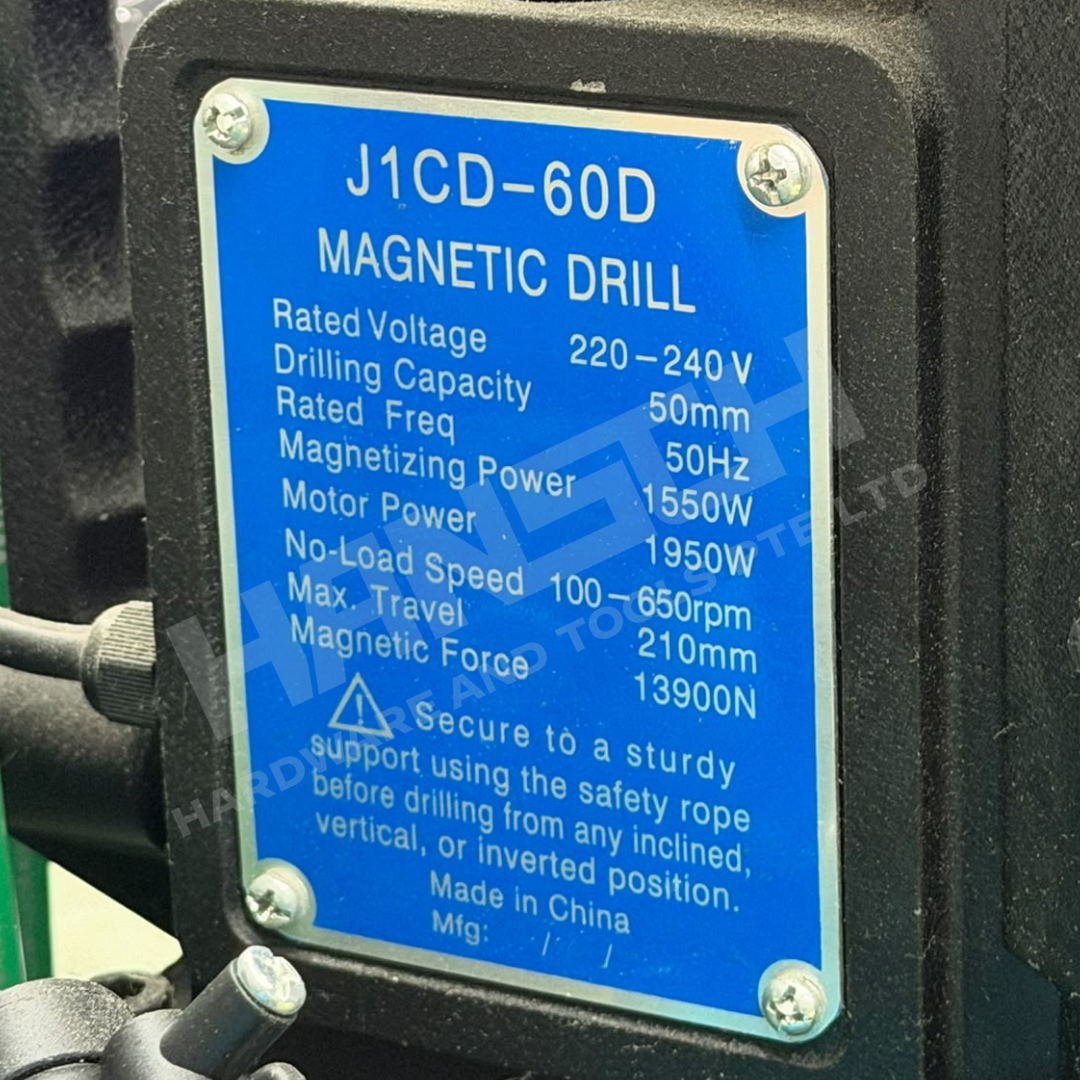

Specifications

• Rated Voltage: 110V / 230V
• Rated Frequency: 50Hz
• Input Power: 1950W
• No-Load Speed: 100–650 RPM
• Arbor Bore: 19.05mm
• Cutter Capacity: 12–60mm
• Max Cutting Depth: 50mm
• Twist Drill Capacity: 1.5–13mm
• Max Tapping Capacity: M12
• Cooling Type: Internal Cooling
• Magnetic Adhesion Force: 13,900N
• Spindle Taper: Weldon 19mm
• Stroke: 210mm
