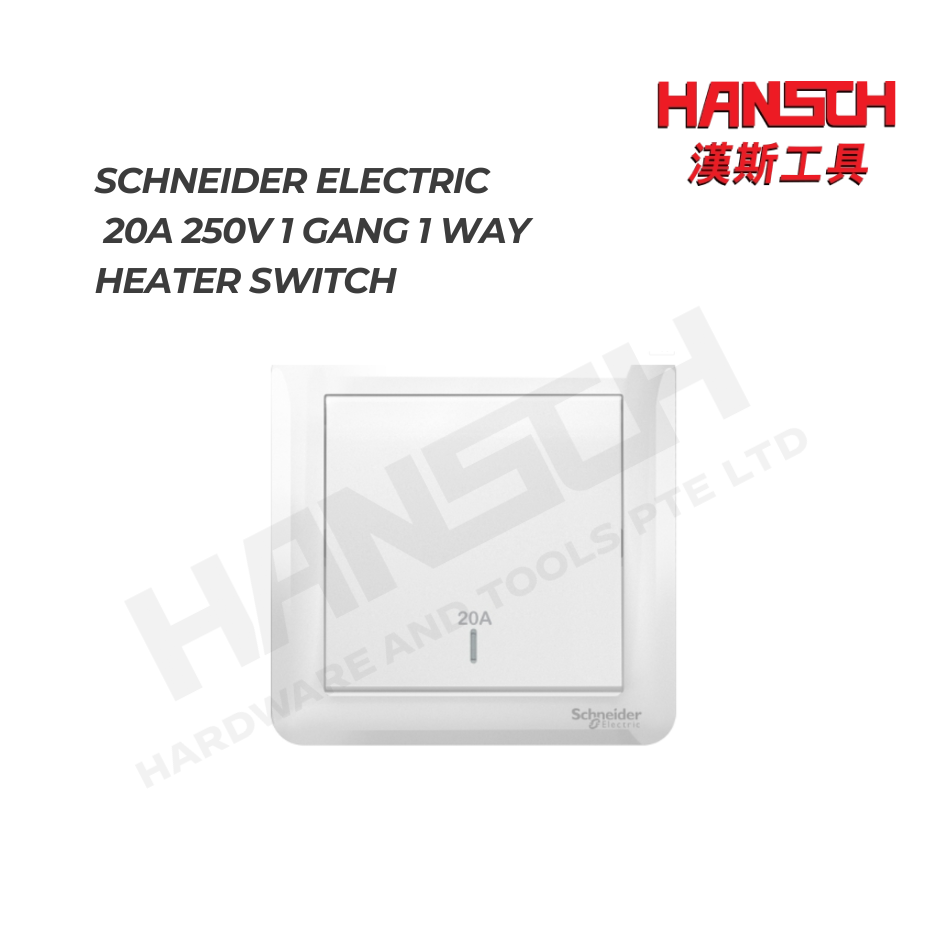

The Schneider Electric Affle Plus A3G31D20N_WE_G2 is a 20A 1 Gang 1 Way Double Pole (DP) Switch suitable for controlling compatible fixed electrical appliances, including water heaters.
Its double pole switching configuration allows both live and neutral conductors to be disconnected through a single switch operation, providing a practical means of electrical isolation.
Featuring a white finish and a simple rocker switch design, it is suitable for residential and commercial electrical installations.
20A Rated Current: Designed for compatible fixed electrical appliances requiring a 20A switch.
Double Pole (DP) Switching: Disconnects both live and neutral conductors when switched off.
1 Gang 1 Way Configuration: Single switch for ON/OFF control.
Water Heater Applications: Suitable for appropriately rated water heater electrical circuits.
Affle Plus Series: Part of Schneider Electric's Affle Plus range of wiring accessories.
White Finish: Clean appearance suitable for different interior environments.
Standards Compliance: Marked IEC 60669-1, BS EN 60669-1 and MS IEC 60669-1.
| Range | Affle Plus |
| Product or Component Type | Switch |
| Device Application | Control switch |
| Load Type | Air conditioner Heater |
| Colour | White |
| Complementary | |
|---|---|
| Device Mounting | Flush |
| Switch Function | 2-pole 1-way |
| Cable Cross Section |
4 mm² stranded cable 2.5 mm² solid cable 2.5 mm² stranded cable 4 x 4 mm² solid cable for AC |
| Rated Current | 20 A at 250 V AC |
| Number of Gangs | 1 gang |
| Material |
Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: surround Polycarbonate: actuator PA66 GF30: tip |
| Connections - Terminals | Screw terminal |
| Embedding Depth | 19.3 mm |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 32.6 mm |
| Environment | |
| Maximum Ambient Air Temperature for Operation | 35 °C |
| Relative Humidity | 0–95% |
| Operating Altitude | 5000 m |
| Product Certifications | IEC |
| Standards |
IEC 60669-1 MS IEC 60669-1 BS EN 60669-1 |
