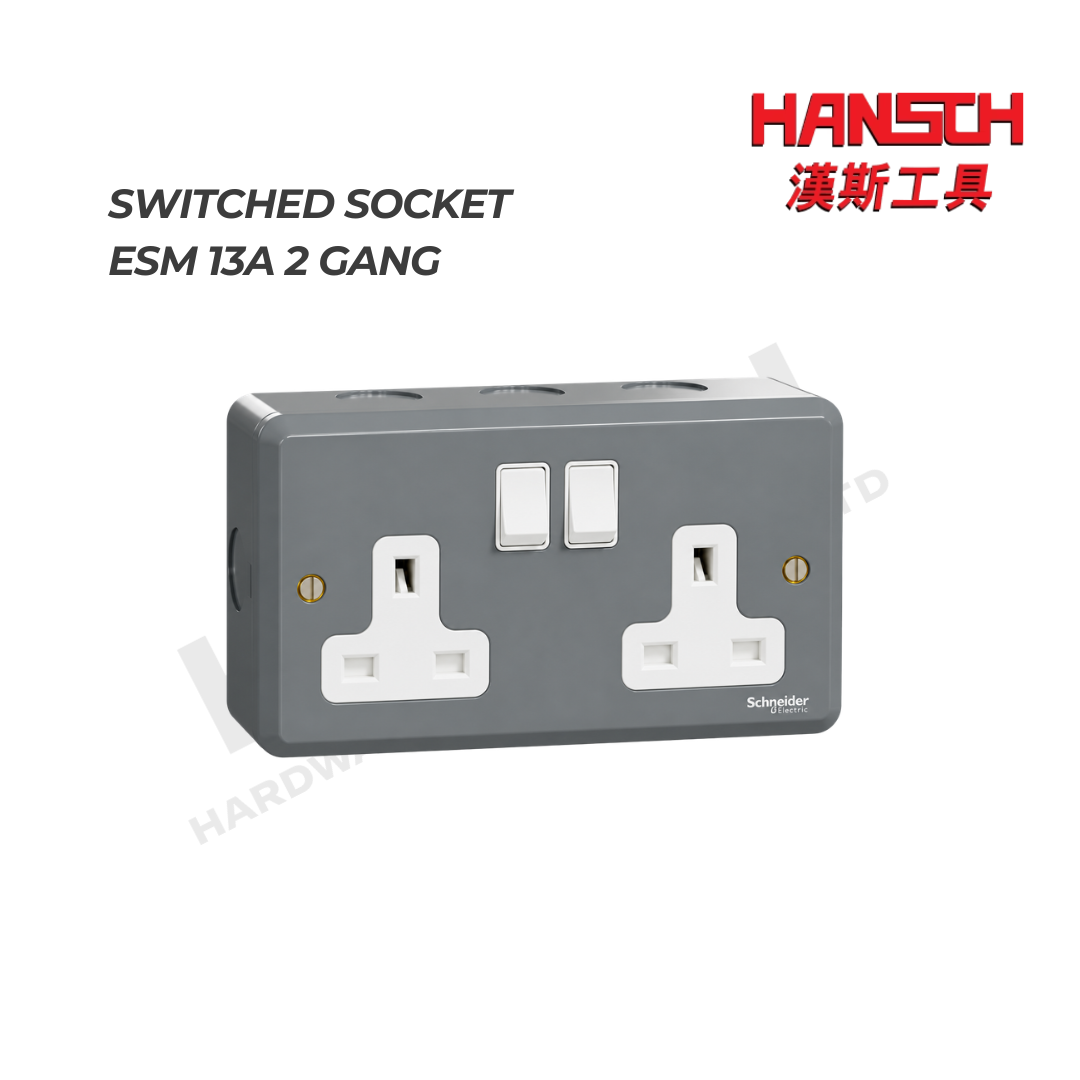

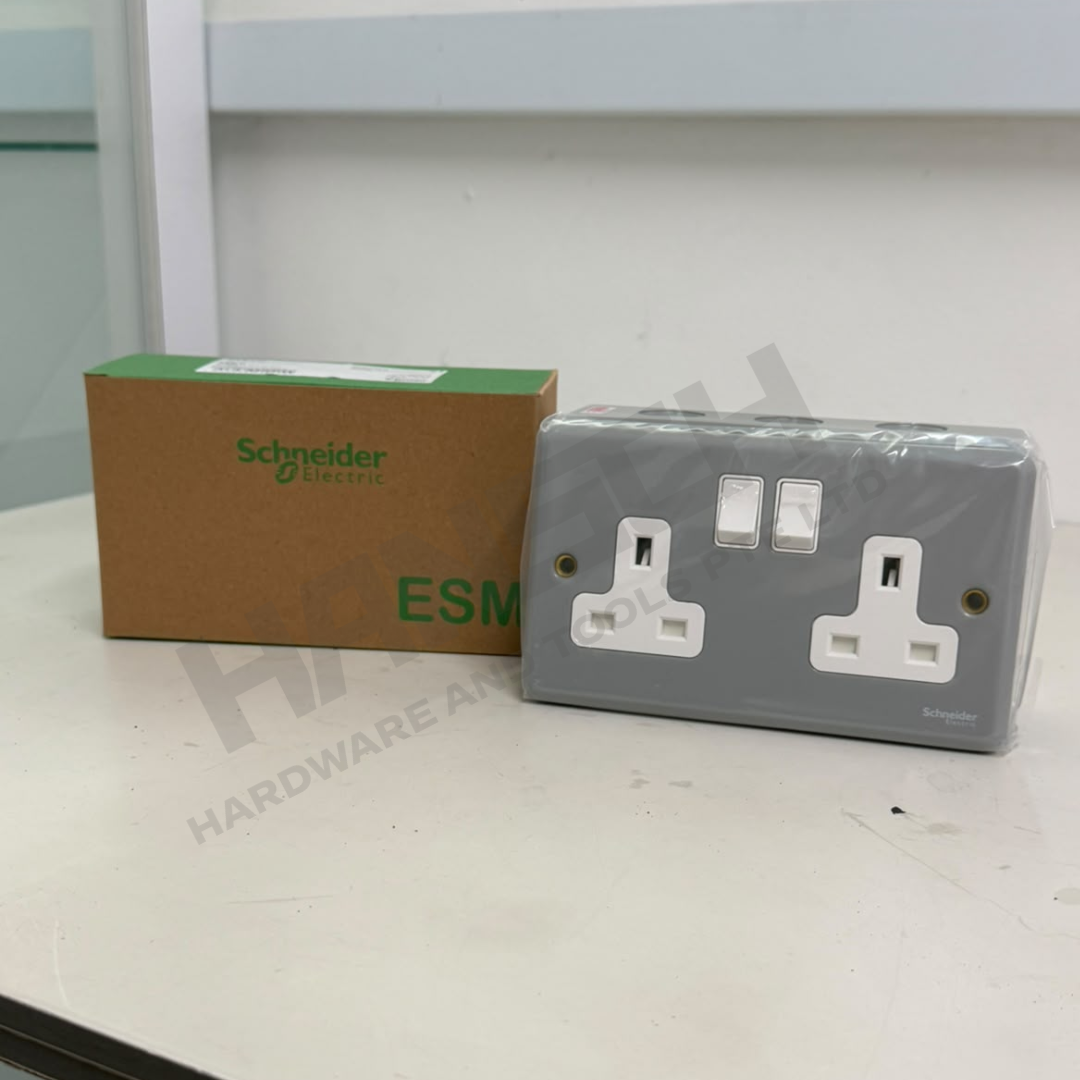

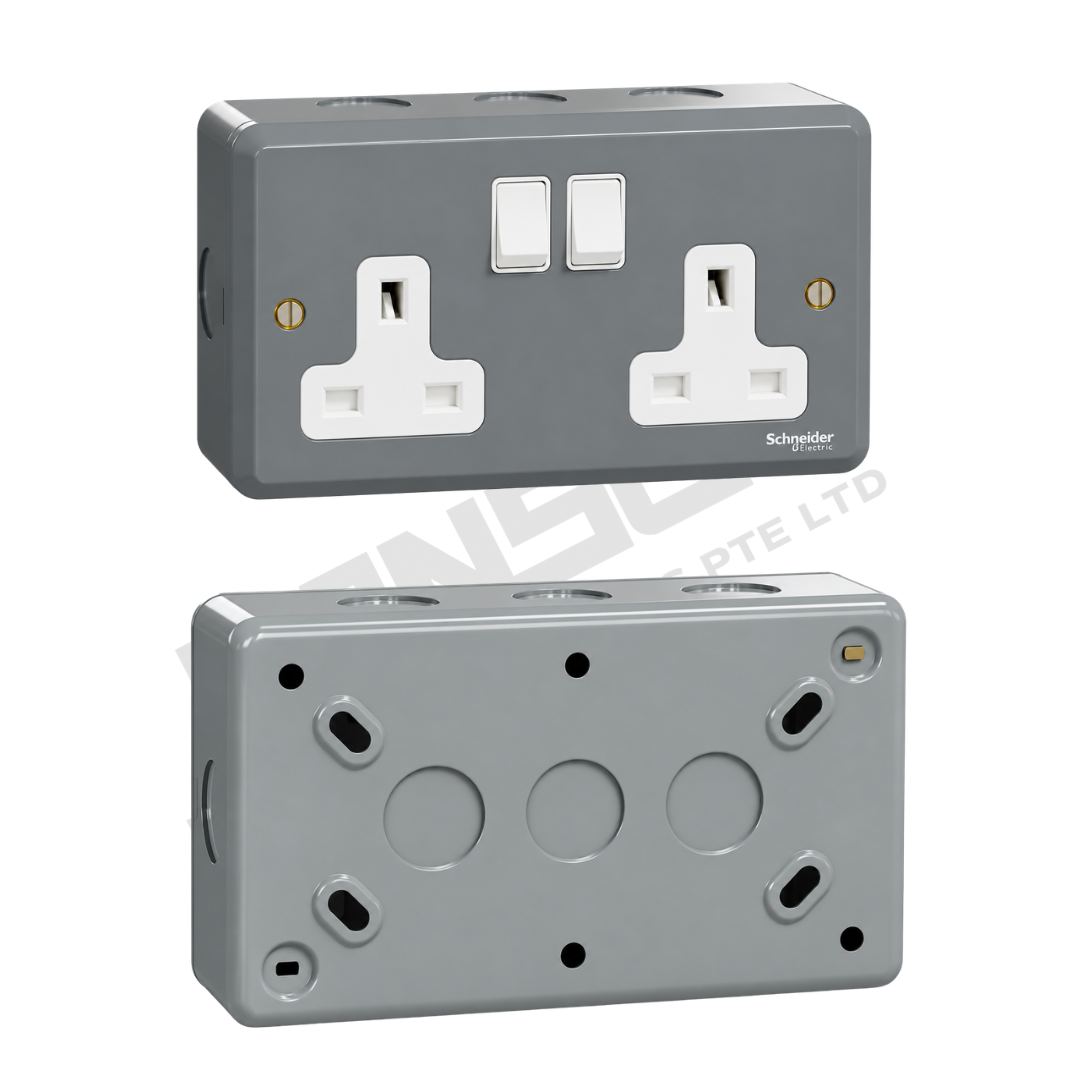

The Schneider Electric ESMT25 13A 2 Gang Switched Socket is a complete surface-mounted socket solution from the ESM range, designed for reliable electrical power connection and control. It features two shuttered 2P + E socket outlets with individual rocker switches, housed in a durable grey enclosure.
Rated at 13A, 250V AC with a 50/60Hz network frequency, the socket is suitable for standard electrical installations. The unit is manufactured using PC and steel materials with a powder-coated, painted surface finish for a neat and durable installation.
Key features include:
| General Specifications | |
|---|---|
| Range | ESM |
| Product or Component Type | Switched socket |
| Assembly Type | Complete product |
| Device Application | Energy management |
| Colour Tint | Grey |
| Control Type | Control |
| Technology Type | Electromechanical |
| Protection | Shuttered |
| Main Colour Tint | Grey |
| Technical Specifications | |
| Control Type | Rocker |
| Number of Gangs | 2 gangs |
| Number of Outlets | 1 |
| Actuator | Rocker |
| Mounting Type | By screw |
| Installation Type | Surface |
| Material | PC, Steel |
| Surface Finish | Powder coated |
| Rated Operational Voltage [Ue] | 250 V AC |
| Network Frequency | 50/60 Hz |
| Rated Current [In] | 13 A |
| Connections / Terminals | 2 x 4 mm² screw terminal for rigid or flexible cable |
| Depth | 49.5 mm |
| Height | 86 mm |
| Width | 146 mm |
| Mounting Centers | 120.6 mm |
| Net Weight | 0.4287 kg |
| Surface Treatment | Painted |
| Wire Stripping Length | 12 mm |
| Number of Power Socket Outlets | 2 x 2P + E |
| Number of Switches | 2 |
