ZJQ4116 550W Precision Bench Drill Machine 16-Speed 高速钻床台式电钻多功能16级转速

The ZJQ4116 Precision Bench Drill Press is a sturdy and versatile drilling machine designed for accurate drilling...
Availability: In Stock
$0.00
$0.00
Please hurry! Only 99 left in stock
Subtotal: $0.00

Free Shipping

Free standard shipping on orders over $150

ZJQ4116 550W Precision Bench Drill Machine 16-Speed 高速钻床台式电钻多功能16级转速

ZJQ4116 550W Precision Bench Drill Machine 16-Speed 高速钻床台式电钻多功能16级转速

$0.00

ZJQ4116 550W Precision Bench Drill Machine 16-Speed 高速钻床台式电钻多功能16级转速

$0.00

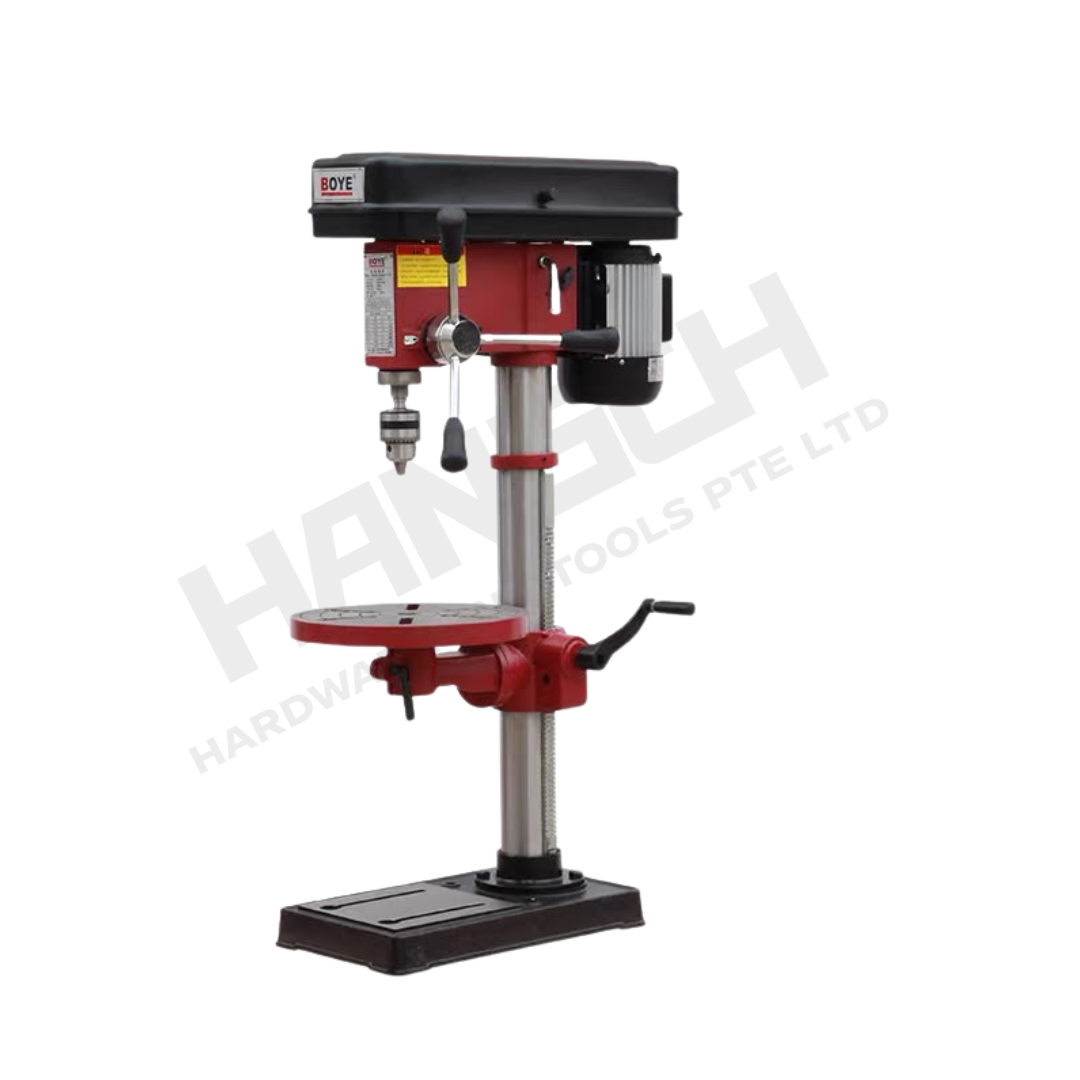

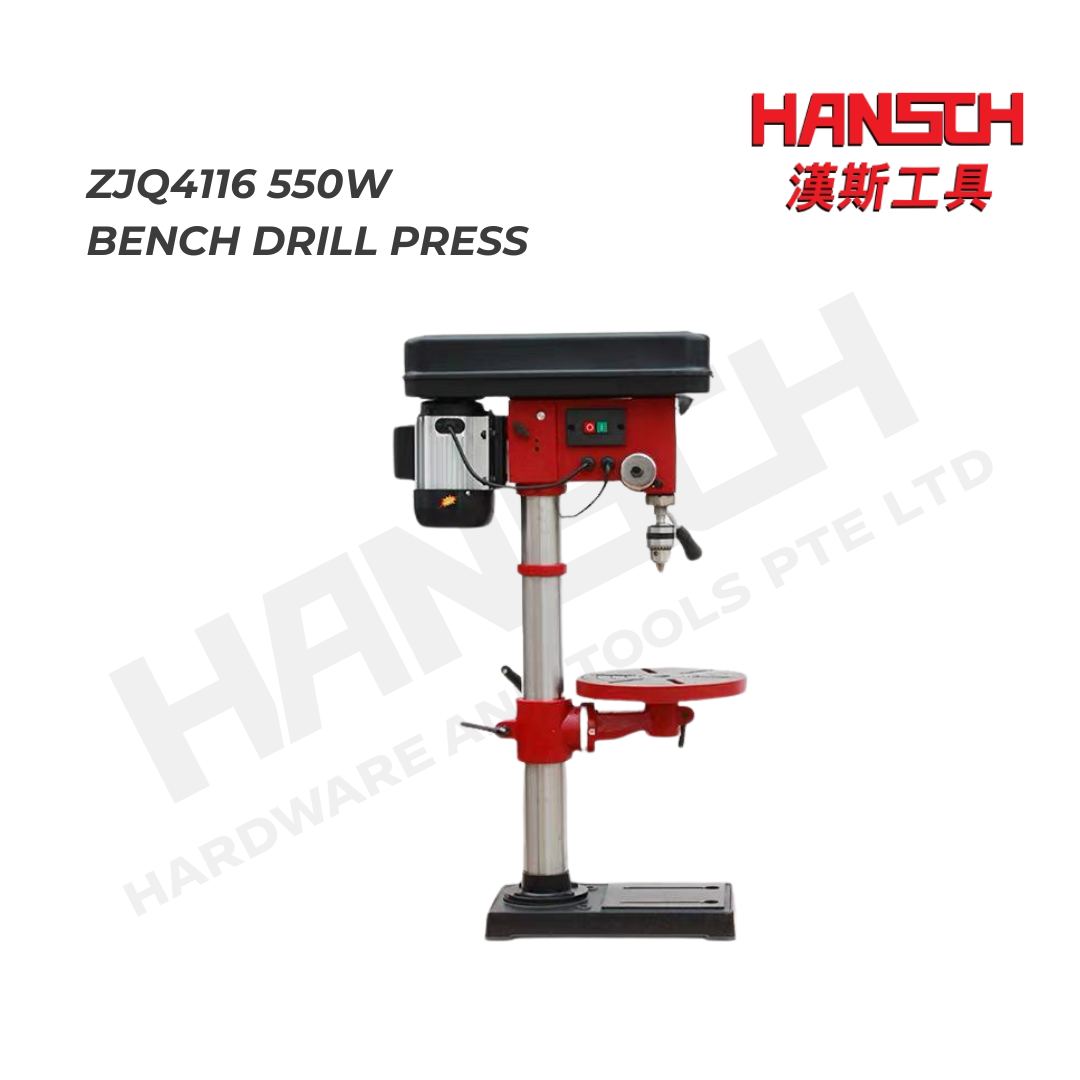

The ZJQ4116 Precision Bench Drill Press is a sturdy and versatile drilling machine designed for accurate drilling applications. Powered by a 550W induction motor, it features 16 selectable speeds from 220 to 2840 r/min, allowing the drilling speed to be adjusted according to different materials and applications.

Equipped with a 16mm high-precision drill chuck, MT2 spindle taper, and 85mm spindle travel, the machine provides stable and controlled drilling performance. Its precision-ground cast iron worktable can be height adjusted and tilted for angled drilling, while the built-in depth indicator helps users control drilling depth more accurately. The cast iron belt pulley system and solid column construction provide added stability for workshop and industrial use.

Technical Specifications

Product Type Bench Drill Press
Model ZJQ4116
Motor Power 550W
Drill Chuck Capacity 16mm
Spindle Travel 85mm
Spindle Taper MT2
Number of Speeds 16 Speeds
Speed Range 220–2840 r/min
Swing 324mm
Worktable Size Ø290mm
Base Size 420 × 250mm
Column Diameter Ø72mm
Overall Height 980mm
Packing Size 770 × 450 × 270mm

Product Features

  • 550W Induction Motor: Provides stable and efficient power for drilling applications.
  • 16-Speed Adjustment: Offers a speed range of 220–2840 r/min for different drilling requirements.
  • 16mm High-Precision Drill Chuck: Designed for secure clamping and accurate drilling.
  • MT2 Spindle Taper: Suitable for a variety of drilling operations.
  • 85mm Spindle Travel: Allows controlled drilling to greater depths.

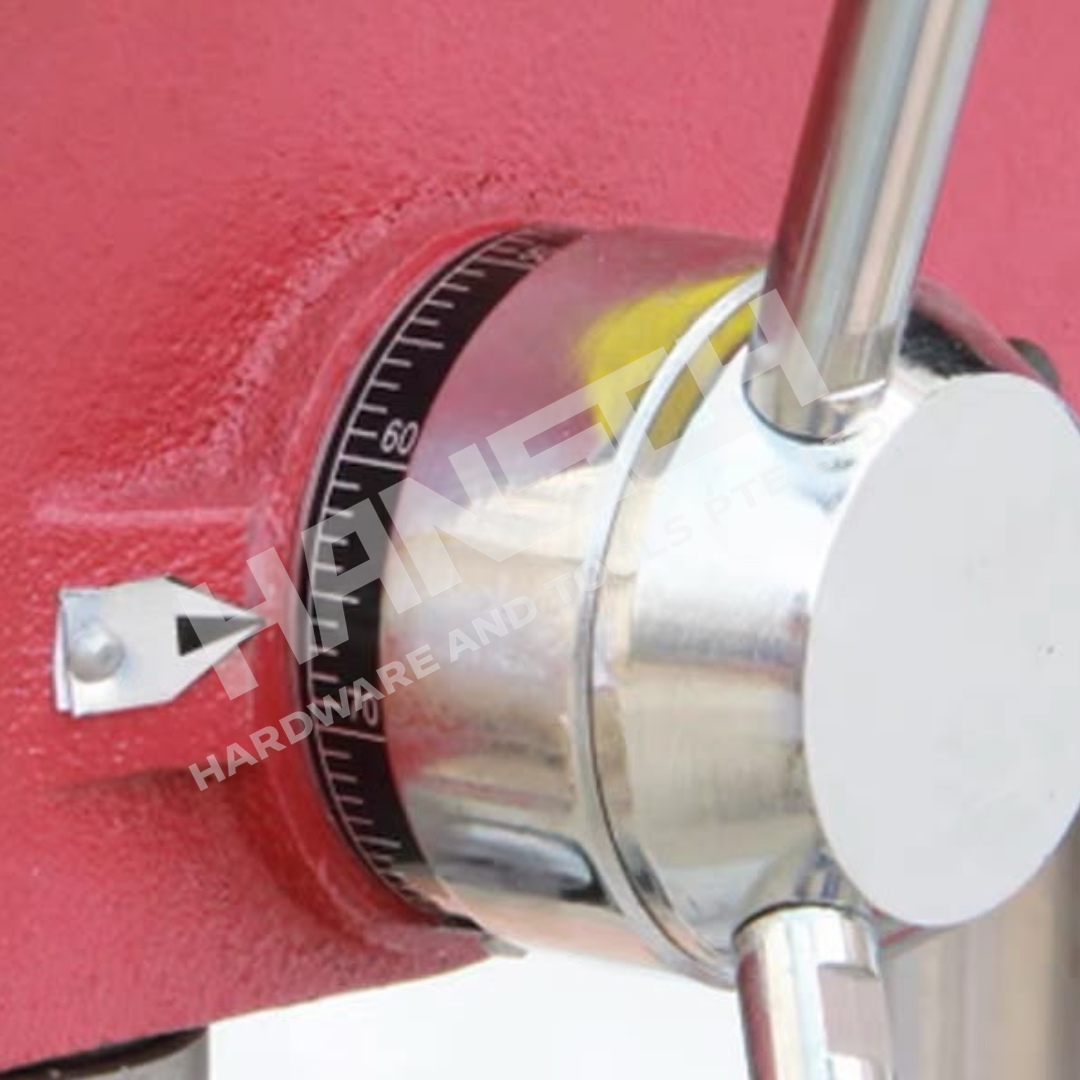

  • Precision Depth Indicator: Helps achieve consistent and accurate drilling depth.

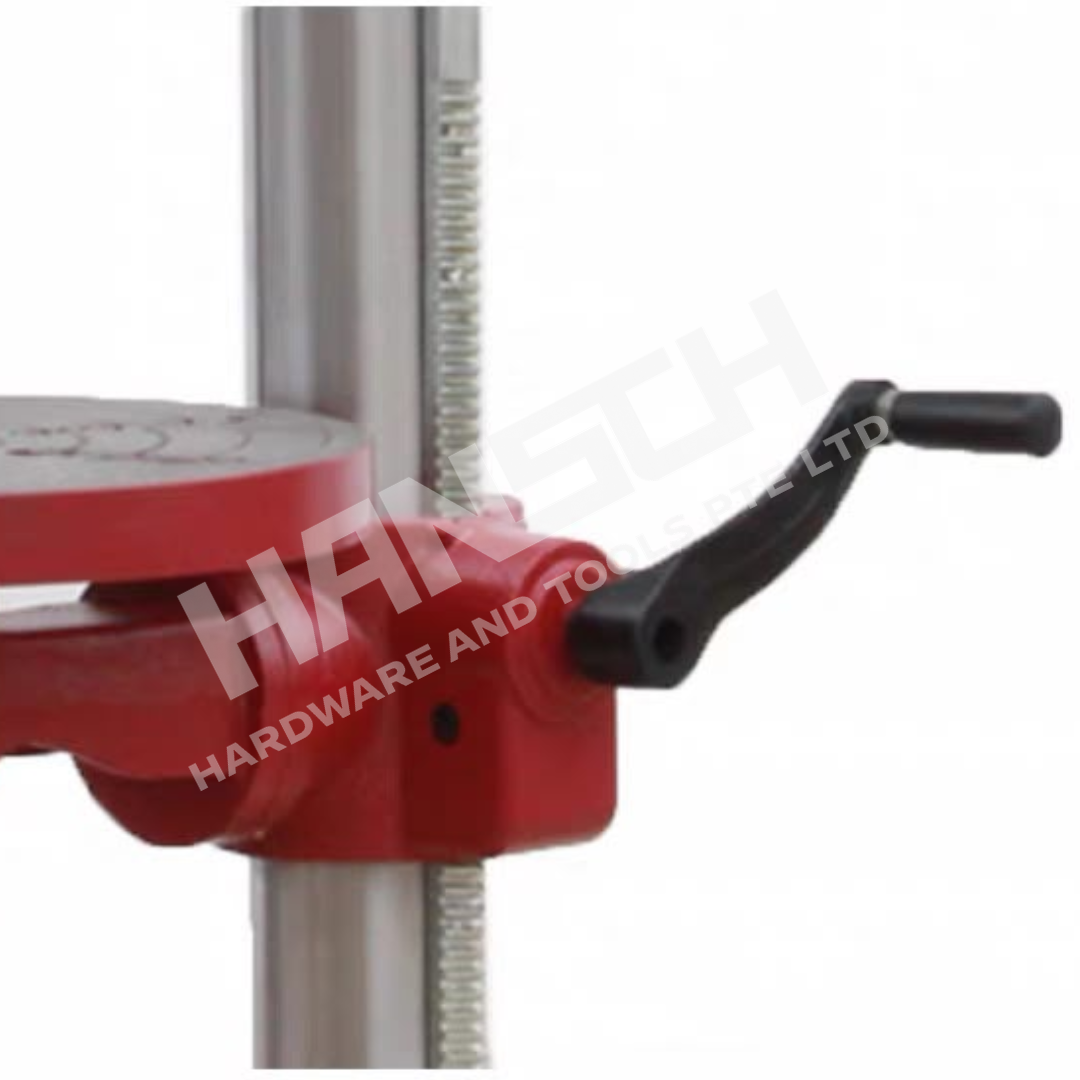

  • Adjustable Cast Iron Worktable: Can be raised, lowered and tilted up to 45° for different drilling angles.
  • Cast Iron Belt Pulley System: Provides durable and stable speed transmission.
  • Strong Column Construction: Ø72mm column helps improve machine stability during operation.
  • Aluminium Motor Housing: Supports efficient heat dissipation during use.
